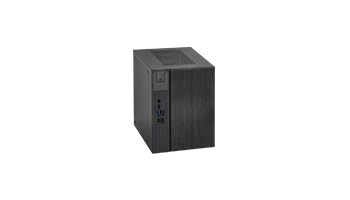

ASROCK DESKMEET-X300 Mini Computer



Asrock DESKMEET X300, Supports AMD AM4, 4x DDR4 DIMM slots (Max. 128GB), 2x SATA3, 1x Ultra M.2 2280, 1x GLAN, 1x PCIe 3.0 x16, 4x USB 3.2, 4x USB 2.0, 1x VGA, 1x HDMI, 1x Audio Jack, PSU 500W 80+ Bronze



System

System type Personal computer

Form factor of the system Desktop

Processor

CPU socket Socket AM4

Max. number of installed processors 1

AMD X300 motherboard chipset

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 2933MHz(PC4-23400)

3200MHz(PC4-25600)

Offers an ECC/non-ECC error checking method

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1

SATA III-600 (2)

Storage Controller:

PCI Express 3.0 x4 (M.2)

Support Wi-Fi Controller:

M.2 (Key E)

Audio output

Audio controller - form factor Built-in

Audio chipset Realtek ALC897

Network specifications

Network Drive Form Factor Embedded

Realtek RTL8111H network card chipset

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

PCI Express 3.0 x16 1

Supported interfaces

Headphones 1 (3.5 mm mini jack)

USB 3.2 Gen 1 1 (USB 3.2 (type C)), 4 (USB 3.2 (type A))

USB 2.0 4 (USB 2.0 (type A))

DisplayPort 1

HDMI 1 (HDMI (Type A))

VGA 1 (15-pin D-sub)

LAN 1 (RJ-45)

Audio interface 1 (3.5 mm mini jack)

Power

Power supply type Power supply module

Power Location Internal

Number of installed power supplies 1;

Max. number of supported power supplies 1

Maximum output power 500 W

Other features

Exterior color Black

Types of installation Desktop

In the Box Screws

User manual

Cables included 2 x SATA cables

Dimensions & weight

Height 221.6 mm

Depth 236.1 mm

Width 268 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 1 kg

Package Weight - Net (kg) 0.9 kg

Quantity per pack 1

Carton weight - Gross (kg) 1 kg

Retail Packaging Net Weight Carton 0.9 kg

Retail Packaging Net Weight Plastic 0.9 kg

Packages in Carton 1

Package type With packaging
