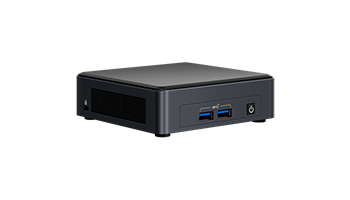

INTEL BNUC11TNKI50000 NUC 11 Pro
Intel NUC 11 Pro Kit NUC11TNKi5, no cord, single pack
System
System type Personal Computer Barebone
System Form Factor Ultra Compact Form Factor
Processor
Processor Intel Core i5 Mobile Processor 1135G7
Number of CPU cores 4
Threads Quantity 8
Maximum CPU bus clock speed 4 GT/sec
Socket 1449 processor socket
Number of installed processors 1
Max. number of installed processors 1
CPU Cache Size 8 MB
Features Supports 10 nm Processors
Number of motherboards supported 1
Memory
Memory type DDR4 SDRAM
Memory form factor SODIMM 260-pin
Memory Speed/Frequency 3200MHz(PC4-25600)
Offers a non-ECC error checking method
Maximum amount of installed memory 64 GB
Total number of memory slots 2
Memory Features Two DDR Channels
Controller
Built-in Storage Controller:
PCI Express 4.0 x4 (M.2 (Key M))
Storage Controller:
PCIe 3.0 x1/SATA (M.2 (Key B))
Plug-in card Wi-Fi Controller:
Intel Wi-Fi 6 AX201 M.2 (Key E)
Video output
Video controller - form factor Built-in
Intel Iris Xe Graphics video card chipset
Video memory type Shared video memory
Network specifications
Network Drive Form Factor Embedded
Intel I225-LM network card chipset
LAN Yes
WI-FI IEEE 802.11ax Wi-Fi 6
Bluetooth Bluetooth 5.2
Supported data exchange protocols 2.5 Gbps
Slots provided
M.2 Slot Quantity 2
Supported interfaces
USB 3.2 Gen 1 3 (USB 3.2 (type A))
USB 2.0 1 (USB 2.0 (type A))
LAN 1 (RJ-45)
Thunderbolt 3 1 (USB Type-C)
Thunderbolt 4 1 (USB Type-C)
HDMI 2 (HDMI (Type A))
Power
Power type Power adapter
Power supply location External
Other features
Types of installation Desktop
Dimensions & weight
Height 37 mm
Depth 117 mm
Width 112 mm
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1.4 kg
Quantity per pack 1
Packages in Carton 1
Package type With packaging
EAN code 5032037204576
