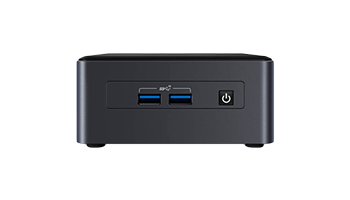

INTEL BNUC11TNHI50002 NUC 11 Pro
Intel® NUC 11 Pro Kit NUC11TNHi5, EU cord, i5 Processor with Irix Xe graphics, dual M.2 slot, 2.5" SATA slot, 2xHDMI, 2x Thunderbolt 4 (USB-C+DP)
System
System type Personal Computer Barebone
System Form Factor Ultra Compact Form Factor
Processor
Processor Intel Core i5 Mobile Processor 1135G7
Number of CPU cores 4
Threads Quantity 8
Maximum CPU bus clock speed 4 GT/sec
Socket 1449 processor socket
Number of installed processors 1
Max. number of installed processors 1
CPU Cache Size 8 MB
System on Chip (SoC) motherboard chipset
Features Supports 10 nm Processors
Number of motherboards supported 1
Memory
Memory type DDR4 SDRAM
Memory form factor SODIMM 260-pin
Memory Speed/Frequency 3200MHz(PC4-25600)
Offers a non-ECC error checking method
Maximum amount of installed memory 64 GB
Total number of memory slots 2
Memory Features Two DDR Channels
Controller
Built-in Storage Controller:
PCI Express 4.0 x4 (M.2 (Key M))
Storage Controller:
PCIe 3.0 x1/SATA (M.2 (Key B))
Storage Controller:
SATA (1)
Plug-in card Wi-Fi Controller:
Intel Wi-Fi 6 AX201 PCI-Express 3.0 x1 (M.2 (Key E))
Video output
Video controller - form factor Built-in
Intel Iris Xe Graphics video card chipset
Video memory type Shared video memory
Network specifications
Network Drive Form Factor Embedded
Intel I225-LM network card chipset
LAN Yes
WI-FI IEEE 802.11ax Wi-Fi 6
Bluetooth Bluetooth 5.2
Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps
Slots provided
Number of internal slots for 2.5-inch drives 1
M.2 Slot Quantity 2
Supported interfaces
USB 3 (USB 3.2 (type A)), 1 (USB 2.0 (type A))
LAN 1 (RJ-45)
Thunderbolt 4 2 (USB Type-C)
HDMI 2 (HDMI (Type A))
Power
Power type Power adapter
Other features
Exterior color Black
Types of installation Desktop
Cables Included Power Cable (EU Plug)
Dimensions & weight
Height 54 mm
Depth 117 mm
Width 112 mm
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1.6 kg
Package Weight - Net (kg) 1.3 kg
Quantity per pack 1
Carton weight - Gross (kg) 1.6 kg
Packages in Carton 1
Package type With packaging
EAN code 5032037205054
