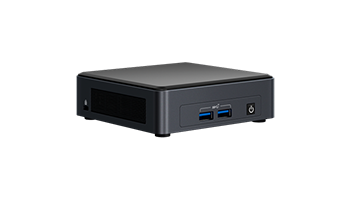

INTEL BNUC11TNHI30Z02 NUC 11 Pro



Personal Computer Barebone INTEL NUC 11 Pro (Ultra Compact Form Factor, System on Chip (SoC)1 x , Intel Core i3 Mobile Processor 1115G4 (Socket 1449), Bus 4GT/sec, DDR4 SDRAM 3200MHz(PC4-25600), Wi-Fi , Intel UHD Graphics, Black)



System

System type Personal Computer Barebone

System Form Factor Ultra Compact Form Factor

Processor

Processor Intel Core i3 Mobile Processor 1115G4

Number of CPU cores 2

Threads Quantity 4

Maximum CPU bus clock speed 4 GT/sec

Socket 1449 processor socket

Number of installed processors 1

Max. number of installed processors 1

CPU Cache Size 6 MB

System on Chip (SoC) motherboard chipset

Features Supports 10 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor SODIMM 260-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

Offers a non-ECC error checking method

Total number of memory slots 2

Memory Features Two DDR Channels

Controller

Built-in Storage Controller:

PCI Express 4.0 x4 (M.2 (Key M))

Storage Controller:

PCIe 3.0 x1/SATA (M.2 (Key B))

Plug-in card Wi-Fi Controller:

Intel Wi-Fi 6 AX201 PCI-Express 3.0 x1 (M.2 (Key E))

Video output

Video controller - form factor Built-in

Intel UHD Graphics video card chipset

Video memory type Shared video memory

Network specifications

Network Drive Form Factor Embedded

Intel I225-LM network card chipset

LAN Yes

WI-FI IEEE 802.11ax Wi-Fi 6

Bluetooth Bluetooth 5.2

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

2.5 Gbps

Slots provided

Number of internal slots for 2.5-inch drives 1

M.2 Slot Quantity 2

Supported interfaces

USB 3.2 3 (USB 3.2 (type A))

USB 2.0 1 (USB 2.0 (type A))

LAN 1 (RJ-45)

HDMI 2 (HDMI (Type A))

Power

Power type Power adapter

Number of installed power supplies 1;

Other features

Exterior color Black

Types of installation Desktop

Cables Included Power Cable (EU Plug)

Dimensions & weight

Height 54 mm

Depth 117 mm

Width 112 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 1.48 kg

Package Weight - Net (kg) 1.48 kg

Quantity per pack 1

Carton weight - Gross (kg) 1.48 kg

Packages in Carton 1

Package type With packaging
