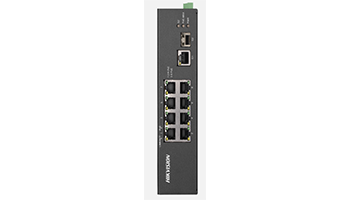

HIKVISION DS-3T0310HP-E/HS 8 Port Fast Ethernet Unmanaged Harsh POE Switch
10-port industrial PoE network switch; 8 x 10 / 100Mbps Fast Ethernet port + 1 x 10/100 / 1000Mbps Uplink Ethernet + 1 x 10/100 / 1000Mbps Uplink optical SFP port; Hi-PoE support 90W (Port 1 ~ 2), PoE + support 30W IEEE 802.3af / at (Port 3 ~ Port 8); total PoE budget 110W; Ethernet signal transmission up to 100 m; "Extended" mode, providing operation at up to 300 m (Port 7 ~ 8); PoE watchdog function; "Port isolation" port mode 1 ~ 8; switching capacity 5.6Gbps; built-in lightning protection 6kV; 48Vdc / 2.5A; metal housing -30 ~ + 65С; dimensions 197x114x42 mm
-
6 × 100M PoE ports, 2 × Hi-PoE port, 1 × gigabit RJ45 port and 1 × gigabit SFP fiber optical port.
-
IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
-
IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
-
6 KV surge protection for PoE ports.
-
PoE output power management.
-
Up to 300 m long-range transmission.
-
PoE watchdog to auto detect and restart the cameras that do not respond.
-
Port isolation to improve network security.
-
Wider temperature (-30 to 65 °C) access design.
-
Wire-speed forwarding.
-
Store-and-forward switching.
-
Solid high-strength metal shell.
-
Reliable fan-free design.
