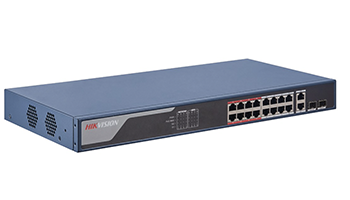

HIKVISION DS-3E1318P-EI/M 16 Port Fast Ethernet Smart managed POE Switch



18-port smart managed PoE network switch; 16 x 10 / 100Mbps Fast Ethernet ports + 2 x 10/100 / 1000Mbps Uplink combo ports (2 copper + 2 SFP); PoE + support IEEE 802.3af / at (Port 1 ~ Port 16), up to 30W max per port (total PoE budget 230W); Ethernet signal transmission up to 100 m; supports remote upgrade, reset, log view, configuration; supports visualization of the network topology in iVMS-4200; real-time health monitoring / alarm; "Priority" mode of ports 1 ~ 8; switching capacity 7.2Gbps; built-in lightning protection 6kV; 220Vac / 2.5A; dimensions: 440x44x221 mm



• 16 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.

• IEEE 802.3at/af standard for PoE ports.

• Network topology management, alarm push, network health monitor.

• 6 KV surge protection for PoE ports.

• AF/AT camera can reach up to 300 m in extend mode.
