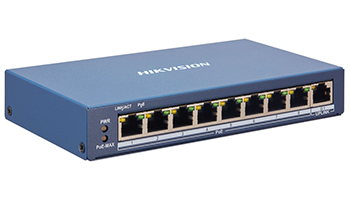

HIKVISION DS-3E1309P-EI 8 Port Fast Ethernet Smart managed POE Switch



9-port smart managed PoE network switch; 8 x 10 / 100Mbps Fast Ethernet port + 1 x 10/100 / 1000Mbps Uplink Ethernet port; PoE + support IEEE 802.3af / at (Port 1 ~ Port 8), up to 30W max per port (total PoE budget 110W); Ethernet signal transmission up to 100 m; supports remote upgrade, reset, log view, configuration; supports visualization of the network topology in iVMS-4200; real-time health monitoring / alarm; switching capacity 3.6Gbps; built-in lightning protection 6kV; 48Vdc / 2.5A; dimensions: 170x28x93 mm



• 8 × 100 Mbps PoE RJ45 ports, 1 × gigabit network RJ45 port.

• IEEE 802.3at/af standard for PoE ports.

• Network topology management, alarm push, network health monitor.

• 6 KV surge protection for PoE ports.

• Up to 300 m long-range transmission.

• AF/AT camera can reach up to 300 m in extend mode.
