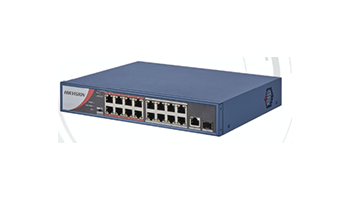

Hikvision DS-3E0318P-E(B) 16-Port 100 Mbps Long-Range Unmanaged PoE Switch



DS-3E0318P-E/M(B) switch is a layer 2 long-range PoE switch, providing 16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port. The switch provides advanced PoE technology and supports extend mode with long-range access up to 250 m. The prior and stable transmission of the important surveillance area videos can also be guaranteed when connected to the high priority ports. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, it is applicable for access or aggregation and upload of small-scale LAN devices.



Feature and Function



• 16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port. • IEEE 802.3at/af standard.

• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.

• High priority ports.

• 8-core power supply.

• Up to 250 m transmission distance.

• 6 KV surge protection for PoE ports.

• PoE power management.

• 1000 Mbps network access.

• Wire-speed forwarding and non-blocking design. • Store-and-forward switching.

• Solid high-strength metal shell.
