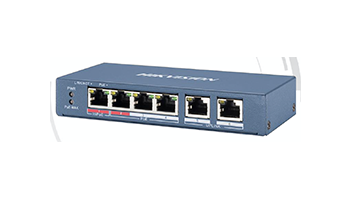

HIKVISION DS-3E0106HP-E 4-Port 100 Mbps Long-Range Unmanaged PoE Switch



DS-3E0106HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports. The switches provide advanced Hi-PoE/PoE technology and support extend mode with long-range access up to 250 m. The prior and stable transmission of the important surveillance area videos can also be guaranteed when connected to the high priority ports. Meanwhile, the 2 × 10/100 Mbps RJ45 uplink ports guarantee applications of multiple network solutions.



Feature and Function



• 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports. • IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W port power).

• IEEE 802.3at/af standard for PoE ports.

• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.

• 6 KV surge protection for PoE ports.

• AF/AT camera can reach up to 250 m in extend mode. Hi-PoE camera can reach up to 150 m. • High priority ports.

• PoE power management.

• Dual uplink network design.

• Wire-speed forwarding and non-blocking design.

• Store-and-forward switching.

• Solid high-strength metal shell.

• Reliable fan-free design.



Gross weight 0.77 kg

Net weight 0.24 kg32
