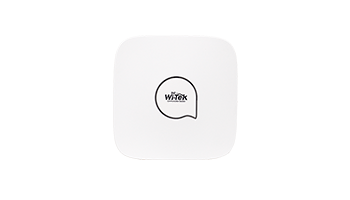

Wi-Tek WI-AP217 Access point module for wireless connection



● 2 x Gigabit Ethernet ports

● 300Mbps at 2.4GHz + 867Mbps at 5GHz

● Support fast roaming technology

● Support Fit/Fat/Repeater/WISP modes

● Support AP controller and cloud management



Access point module for wireless connection; 2.4Ghz + 5Ghz/802.11ac wave 2/b/g/n support; transfer speed up to 300Mbps (2.4Ghz)/ 867Mbps (5Ghz); built-in antennas 2x2 MIMO (omnidirectional): 5dBi (2.4Ghz) + 5dBi (5Ghz); operating modes: AP/Gateway/Repeater; Frequency 2400/5000Mhz; power: 27dBm/500mW; 2 x 10/100/1000Mbps Gigabit Ethernet ports; supports up to 16 SSIDs; Functions: Multiple SSIDs/Layer2 roaming/SSID hiding; Security: WEP/WPA/WPA2/ WPAPSK/WPA2-PSK; Management: WEB/Cloud/Centralized; PVC housing for external installation; power supply: 48Vdc PoE (802.3af); dimensions: 315x145x80 mm
