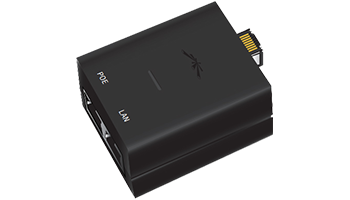

The Ubiquiti airGateway is an easy and affordable way to extend airMAX CPE deployments with indoor Wi-Fi. The airGateway has an interlocking design and PoE passthrough, which makes it a flexible and convenient option for airMAX users.

The Ubiquiti airGateway is an affordable product with a compact form factor. It simultaneously connects indoor client devices and powers the outdoor CPE (Customer Premises Equipment).

Ubiquiti airGateway Key Features

    Acts as an indoor wireless device connecting multiple wireless clients
    Connects to a switch to support wired clients
    Powers the airMAX CPE on the roof
    Product Model Number: AirGateway

To meet the needs of your network, the airGateway can operate as a router, a small / home business router or bridge. The Ubiquiti airGateway can also support access point mode to function as the centre of your wireless network or station mode to extend your network.

Such versatile functionality makes the airGateway extremely convenient and economical to deploy.

The airGateway is compatible with Ubiquiti PoE Adapters featuring 24V, 0.5A or 15V, 0.3A. ESD/Surge Protection The airGateway provides an additional ±24kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.
Ubiquiti airGateway - Technical Specifications
System Information

    Processor Specs Atheros MIPS 24KC, 400 MHz
    Memory 32MB DDR1
    Networking Interface (2) 10/100 Ethernet Ports

Regulatory/Compliance Information

    Wireless Approvals FCC, IC, CE
    RoHS Compliance Yes

Physical/Environmental/Electrical

    Dimensions 54 x 44 x 30 mm
    Weight 56 g
    Enclosure Characteristics Polycarbonate
    Networking Interface (2) 10/100 Ethernet Ports
    Connector (1) Male RJ-45 Connector
    Buttons Reset, Reset Ext
    Antenna Internal 2.4 GHz Antenna
    System LED Dual-Color
    Wi-Fi Standards 802.11 b/g/n
    Operating Frequency 2.412 GHz to 2.484 GHz
    Maximum Power Consumption 4 W
    Maximum TX Power 18 dBm
    Power Method PoE Adapter, 15 / 18 / 24VDC (Not Included)
    ESD/EMP Protection 24kV RJ-45 Interface
    Operating Temperature -30 to 60° C
    Operating Humidity 100% Noncondensing

Supported Data Rates

    Standards Data Rates
    802.11n 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
