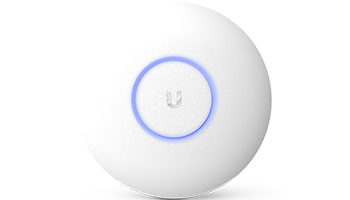

The Ubiquiti UniFi AP AC Lite delivers a cost-effective combination of value and performance in a reduced footprint, with an ultra compact design. The UAP-AC-Lite is 25% smaller than the standard UAP. The UniFi AC Lite AP provides simultaneous, dual-band and 2x2 MIMO technology.

Ubiquiti UniFi AC Lite Key Features

    802.11ac
    2 x 2 MIMO
    Simultaneous dual-band
    2.4GHz throughput of 300Mbps
    5GHz throughput of 867Mbps
    Range of 122 m (400 ft)
    1 Gigabit Ethernet Ports

Technical Specifications
General

    Dimensions 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
    Weight 170 g (6.0 oz) With Mounting Kits 185 g (6.5 oz)
    Networking Interface (1) 10/100/1000 Ethernet Port
    Buttons Reset
    Antenna (2) Dual-Band Antennas, 3 dBi Each
    Wi-Fi Standards 802.11 a/b/g/n/ac
    Power Method Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
    Power Supply 24V, 0.5A Gigabit PoE Adapter*
    Maximum Power Consumption 6.5W
    Maximum TX Power 2.4 GHz 20 dBm 5 GHz 20 dBm
    BSSID Up to Four per Radio
    Power Save Supported
    Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    Certifications CE, FCC, IC
    Mounting Wall/Ceiling (Kits Included)
    Operating Temperature -10 to 70° C (14 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    * Only the single-pack of the UAP-AC-LITE includes a PoE adapter.

Advanced Traffic Management

    VLAN 802.1Q
    Advanced QoS Per-User Rate Limiting
    Guest Traffic Isolation Supported
    WMM Voice, Video, Best Effort, and Background
    Concurrent Clients 200+

Supported Data Rates (Mbps)

    Standard Data Rates
    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
