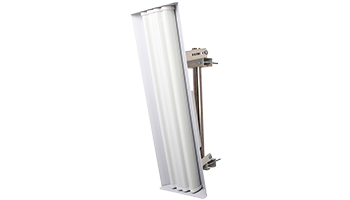

AM-5G19-120 Ubiquiti 5GHz 19dBi 120 degree MIMO AirMax BaseStation Sector Antenna and bracket system

World Class Antenna Designs

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with AirMax BaseStation Sectors

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.



    5GHz 120 degree max sector antenna 19dBi with cables

    ETSI Specification: EN 302 326 DN2

    Dimensions: 27.6x5.7x3.1in (700x145x79mm) diameter

    Weight: 13.0lbs (5.9kg)

    Windloading: 160 mph

    Polarization: Dual Linear

    Frequency Range: 5.15-5.85 GHz

    Cross-pol Isolation: 28dB min

    Max VSWR: 1.5:1

    Hpol Beamwidth (6dB): 123 deg.

    Vpol Beamwidth (6dB): 123 deg.

    Elevation Beamwidth: 4 deg.

    Electrical Downtilt: 2 deg.
