The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed.

The UniFi Enterprise WiFi System includes the UniFi Controller software which can be easily accessed through any standard web browser. The software installs on any Windows, Mac, or Linux PC and can be run on-premise, in your private cloud or in a public cloud service. Using the UniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, guest/hot-spot management, mobile roaming and advanced security options are all seamlessly integrated.

The UniFi controller software is included with each access point. There are no additional software license or subscription costs required to use the UniFi controller.

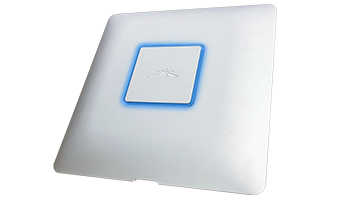

UniFi AP-AC
Dimensions    200 x 204 x 27 mm
Weight    508 g (566 g with Mounting Kits)
Networking Interface    (2) 10/100/1000 Ethernet Ports
Buttons    Reset
Wifi Standards    802.11 a/b/g/n/ac
Power Method    Passive Power over Ethernet (48V), 802.3at Supported (Supported Voltage Range: 39 to 57VDC)
Power Supply    48V, 0.5A PoE Gigabit Adapter Included
Maximum Power Consumption    22 W
BSSID    Up to Four per Radio
Power Save    Supported
Wireless Security    WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Certifications    CE, FCC, IC
Mounting    Wall/Ceiling (Kits Included)
Operating Temperature    -10 to 55°C
Operating Humidity    5 - 80% Condensing
Antennas
2.4 GHz    3 Integrated (Supports 3x3 MIMO with Spatial Diversity)
5 GHz    3 Integrated (Supports 3x3 MIMO with Spatial Diversity)
Max TX Power
2.4 GHz    28 dBm
5 Ghz    28 dBm
Advanced Traffic Management
VLAN    802.1Q
Advanced QoS    Per-User Rate Limiting
Guest Traffic Isolation    Supported
WMM    Voice, Video, Best Effort, and Background
Concurrent Clients    200+
Supported Data Rates (Mbps)
802.11a    6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (5 GHz 2x2)    6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11n (2.4 GHz 3x3)    6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac, 5 GHz (3x3)    6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b    1, 2, 5.5, 11 Mbps
802.11g    6, 9, 12, 18, 24, 36, 48, 54 Mbps
