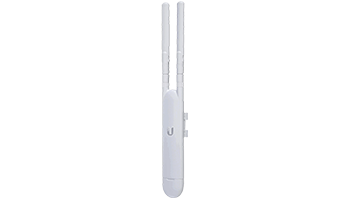

Ubiquiti UniFi 802.11AC Indoor / Outdoor Access Point Mesh, 1167Mbps, dual-omni antennas (UAP-AC-M)

The Ubiquiti UniFi 802.11AC Indoor / Outdoor Access Point Mesh, 1167Mbps, dual-omni antennas features High-Performance Wide-Area Wi-Fi with UniFi Mesh Technology.

UniFi 802.11AC Indoor / Outdoor Access Point Mesh, 1167Mbps Features

    Ideal for Indoor/Outdoor environment
    2.4 GHz Speed* 300 Mbps
    2.4 GHz MIMO 2x2
    5 GHz Speed* 867 Mbps
    183 m (600 ft) Range

Compact Form Factor The UniFi AC Mesh AP is designed to discreetly integrate into any environment.

Weather-Resistant Enclosure The UniFi AC Mesh AP can be used indoors or outdoors.

LED Unique provisioning LED provides administrator location tracking and alerts for each device.

Versatile Mounting The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included.)

Multiple Power Options The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch, EdgePoint™ EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter.

Antenna Options Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.

UAP-AC-M-PRO - Technical Specifications
General

    Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
    Weight 152 g (5.36 oz) with Antennas
    Networking Interface (1) 10/100/1000 Ethernet Port
    Buttons Reset
    Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
    802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
    (Supported Voltage Range: 44 to 57VDC)
    Power Supply 24V, 0.5A Gigabit PoE Adapter (*****)
    Power Save Supported
    Maximum Power Consumption 8.5W
    Maximum TX Power
    2.4 GHz - 20 dBm
    5 GHz - 20 dBm
    Antennas -
    (2) External Dual-Band Omni Antennas
    2.4 GHz - 3 dBi
    5 GHz - 4 dBi
    Wi-Fi Standards 802.11 a/b/g/n/ac
    Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    BSSID Up to Four per Radio
    Mounting Wall/Pole/Fast-Mount (Kits Included)
    Operating Temperature -30 to 70° C (-22 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    Certifications CE, FCC, IC

Advanced Traffic Management

    VLAN 802.1Q
    Advanced QoS Per-User Rate Limiting
    Guest Traffic Isolation Supported
    WMM Voice, Video, Best Effort, and Background
    Concurrent Clients 200+

Supported Data Rates (Mbps)

    Standard Data Rates
    802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
    802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b 1, 2, 5.5, 11 Mbps
