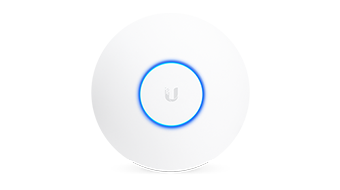

Ubiquiti UAP-nanoHD Access Point , 300Mbps/2.4GHz, 1733Mbps/5GHz, 4x4 MIMO, 1xGE, 200+ Users



Supplier Number



UAP-nanoHD



Description



Initial 802.11ac Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time.

802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi nanoHD AP, to communicate with multiple clients at the same time – significantly increasing multi‐ user throughput and overall user experience.

The following describes a 5-client scenario:

MU-MIMO Assuming the same conditions, a Wave 2 AP provides up to 75% improvement1 overall over a Wave 1 AP. This improvement increases wireless performance and/or serves more clients at the same performance level.



4x4 Spatial Streams At any single time, a Wave 2 AP can communicate with the following MU-MIMO clients:

• four 1x1 clients

• two 2x2 clients

• one 2x2 client and two 1x1 clients

• one 3x3 client and one 1x1 client

A 4x4 Wave 2 AP delivers up to 33% greater performance1 than a Wave 1 AP that is 3x3 in both radio bands.





Features



Networking Interface: 1x10/100/1000 Ethernet Port

Power Method: 802.3af PoE

Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2

BSSID: 8 per Radio
