(Works as stand alone AP)

Compatible with all of the antennas
These are designed to work with the Rocket-series units: The Rockets fit to the antennas easily & quickly (in most cases, the Rocket snaps into place on the back of the antenna).? The photos show how the Rocket snaps in place behind the AirMax sectoral antennas (left) and the RocketDish antenna (right).

AirMax MIMO 2x2 technology enables much faster data-throughput & higher bandwidth:
Therefore these technologies enable high concentrations of VOIP, streaming media, IP cameras, IPTV.
Use with dual-polarity antenna to maximize data-throughput & higher bandwidth.

RANGE:
With 20dbi Sector Antenna: 60KM
With 30dbi RocketDish5 Antenna: 100KM
With 34dbi RocketDish5 Antenna: 174km - see case study

FEATURES

    Breakthrough speed: 150+Mbps real throughput TCPI/IP
    Specifically designed for outdoor Point-to-Point bridging and PTMP Airmax base-station applications.
    Rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance.
    24-volt Power Over Ethernet (PoE) adapter is included

    Support Links:

    10-mile link w/RocketM5: "How To"
    Ubiquiti Gear Directory & Guide
    Wireless ISP Gear Directory
    Dual Polarity Antennas & MIMO
    Rockets: Use Dual-Polarity 2x2 Antennas - or the MIMO does not work

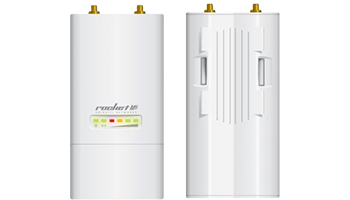

Rocket M5 - Technical Specs
SYSTEM INFORMATION
Processor Specs     Theros MIPS 24KC, 400MHz
Memory Information     64MB SDRAM, 8MB Flash
Networking Interface     1 X 10/100 BASE-TX (Cat. 5, RJ-45) Thernet Interface

REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals     FCC Part 15.247, IC RS210, CE
RoHS Compliance     YES

PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Enclosure Size     16cm length x 8cm width x 3cm height
Weight     0.5 kg
RF Connector     2x RPSMA (Waterproof)
Enclosure Characteristics     Outdoor UV Stabalized Plastic
Mounting Kit     Pole Mounting Kit included
Max Power Consumption     8 Watts
Power Supply     24V, 1A POE Supply Included
Power Method     Passive Power over Thernet (pairs 4,5; 7,8 return)
Operating Temperature     -30C to 75C
Operating Humidity     5 to 95% Condensing
Shock and Vibration     ETSI300-019-1.4
Operating Frequency Summary     5470-5825 MHz
