(Works as stand alone AP)

Range: Over 50KM- see case study here. Can be bridge or Access Point. We have various compatible mounts including tripod, roof/wall mount, and tile-roof mount.

Compatible with all of the antennas in the "Related Items& list near bottom of page.
These are designed to work with the Rocket-series units: The Rockets fit to the antennas easily & quickly (in most cases, the Rocket snaps into place on the back of the antenna).?? The photos show how the Rocket snaps in place behind the AirMax sectoral antennas (left) and the RocketDish antenna (right).

AirMax MIMO 2x2 technology enables much faster data-throughput & higher bandwidth:
Therefore these technologies enable high concentrations of VOIP, streaming media, IP cameras, IPTV.
Use with dual-polarity antenna to maximize data-throughput & higher bandwidth.

FEATURES

    Range: 50KM or more: See case study
    Breakthrough speed: 150Mbps+ real throughput TCPI/IP
    Specifically designed for outdoor Point-to-Point bridging and PTMP Airmax base-station applications.
    Rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance.
    24-volt Power Over Ethernet (PoE) adapter is included

    Support Links:

    Rockets: Use Dual-Polarity 2x2 Antennas - or the MIMO does not work
    Ubiquiti Directory
    WISP Gear
    Dual Polarity Antennas

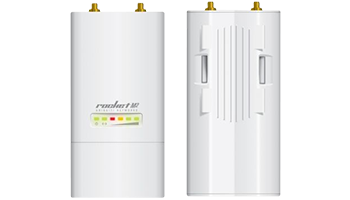

Ubiquiti ROCKET M2 2GHZ: Hi Power 2x2 MIMO Air MAx TDMA BaseStation - Technical Specs
SYSTEM INFORMATION
Processor Specs     Theros MIPS 24KC, 400MHz
Memory Information     64 MB SDRAM, 8MB Flash
Networking Interface     1 X 10/100 BASE-TX (Cat. 5, RJ-45) Thernet Interface
REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals     FCC Part 15.247, IC RS210, CE
RoHS Compliance     YES
OPERATING FREQUENCY 2.4GHz
2GHz TX SPECIFICATIONS           2GHz RX SPECIFICATIONS
      DataRate     Avg. TX     Tolerance           DataRate     Sensitivity     Tolerance
11b/g     1-24Mbps     28 dBm     +/-2dB     11b/g     24Mbps     -97 dBm     +/-2dB
36Mbps     26 dBm     +/-2dB     36Mbps     -80 dBm     +/-2dB
48Mbps     25 dBm     +/-2dB     48Mbps     -77 dBm     +/-2dB
54Mbps     24 dBm     +/-2dB     54Mbps     -75 dBm     +/-2dB

á11n     MCS0     28 dBm     +/-2dB     11n     MCS0     -96 dBm     +/-2dB
MCS1     28 dBm     +/-2dB     MCS1     -95 dBm     +/-2dB
MCS2     28 dBm     +/-2dB     MCS2     -92 dBm     +/-2dB
MCS3     28 dBm     +/-2dB     MCS3     -90 dBm     +/-2dB
MCS4     27 dBm     +/-2dB     MCS4     -86 dBm     +/-2dB
MCS5     25 dBm     +/-2dB     MCS5     -83 dBm     +/-2dB
MCS6     23 dBm     +/-2dB     MCS6     -77 dBm     +/-2dB
MCS7     22 dBm     +/-2dB     MCS7     -74 dBm     +/-2dB
MCS8     28 dBm     +/-2dB     MCS8     -95 dBm     +/-2dB
MCS9     28 dBm     +/-2dB     MCS9     -93 dBm     +/-2dB
MCS10     28 dBm     +/-2dB     MCS10     -90 dBm     +/-2dB
MCS11     28 dBm     +/-2dB     MCS11     -87 dBm     +/-2dB
MCS12     27 dBm     +/-2dB     MCS12     -84 dBm     +/-2dB
MCS13     25 dBm     +/-2dB     MCS13     -79 dBm     +/-2dB
MCS14     23 dBm     +/-2dB     MCS14     -78 dBm     +/-2dB
MCS15     22 dBm     +/-2dB     MCS15     -75 dBm     +/-2dB
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Enclosure Size     16 cm length x 8 cm width x 3cm height
Weight     0.5kg
RF Connector     2x RPSMA (Waterproof)
Enclosure Characteristics     Outdoor UV Stabalized Plastic
Mounting Kit     Pole Mounting Kit included
Max Power Consumption     8 Watts
Power Supply     24V, 1A POE Supply Included
Power Method     Passive Power over Thernet (pairs 4,5+; 7,8 return)
Operating Temperature     -30C to 75C
Operating Himudity     5 to 95% Condensing
Shock and Vibration     ETSI300-019-1.4
