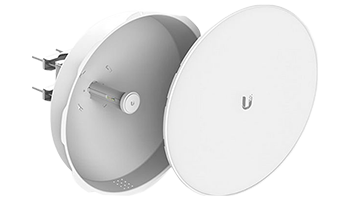

Ubiquiti PowerBeam M5 300 ISO - PBE-M5-300-ISO

The Ubiquiti PowerBeam M5 300 ISO - PBE-M5-300-ISO is an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation. Incorporating advanced engineering with proprietary airMAX technology, the Ubiquiti PowerBeam M5 300 ISO is ideal for deployments requiring maximum performance and RF isolation.

Ubiquiti PBE-M5-300-ISO Key Features

    Frequency - 5 GHz
    Throughput - 150+ Mbps
    Range - 20+ km
    Gain 22 dBi
    Dish Reflector 300 mm
    Plug and Play Installation

The Ubiquiti PowerBeam M5 300 ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the Ubiquiti PowerBeam M5 300 ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.

Superior RF Isolation
Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

Ubiquiti PBE-M5-300-ISO - Technical Specifications
General

    Processor Specs Atheros MIPS 74Kc, 560 MHz
    Memory 64 MB DDR2, 8 MB Flash
    Networking Interface (1) 10/100 Ethernet Port
    Wireless Approvals FCC, IC, CE
    RoHS Compliance Yes

Physical/Electrical/Environmental

    Dimensions 364 x 364 x 276 mm (14.33 x 14.33 x 10.87")
    Weight 2.55 kg (5.62 lb)
    Power Supply 24V, 0.5A PoE
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Supported Voltage Range 20-26VDC
    Max. Power Consumption 6W
    Gain 22 dBi
    Operating Frequency
    Worldwide - 5170 - 5875 MHz
    USA - 5725 - 5850 MHz
    Wind Loading 210 N @ 200 km/h (47 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    LEDs (1) Power, (1) LAN, (4) WLAN
    Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
    Channel Sizes 5/8/10/20/30/40 MHz
    Polarization Dual Linear
    Enclosure Outdoor UV Stabilized Plastic
    Mounting Pole-Mount Kit Included
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Non-Condensing
    Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
    Vibration Test IEC 68-2-6
    Temperature Shock Test IEC 68-2-14
    UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
    Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
