(Works as stand alone AP for connect Mobile and Laptop that Support 2.4GHZ)

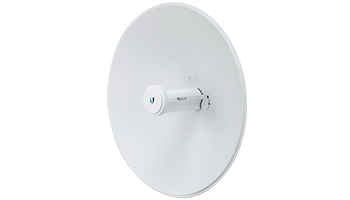

The Ubiquiti PowerBeam PBE-M2-400 supports up to 150+ Mbps real TCP/IP throughput and a range of 20+km. PowerBeam can be used as a Point to Point and Point to Multipoint adding flexibility to your network as and where you need it over time.

Ubiquiti PowerBeam M2 - PBE-M2-400 Features

    Frequency - 2 GHz
    Throughput - 150+ Mbps
    Range - 20+ km
    Gain 18 dBi
    Dish Reflector 400 mm
    Plug and Play Installation

Innovative Mechanical Design
The built-in mechanical tilt conveniently offers 20° of uptilt and up to 20° of downtilt. Since both the dish and brackets are made of galvanised steel, it is weatherproof and offers superior corrosion resistance.

Ubiquiti PowerBeam M2 - PBE-M2-400 - Technical Specifications
PBE-M2-400 System and Regulatory/Compliance

    Processor Specs Atheros MIPS 74Kc, 560 MHz
    Memory 64 MB DDR2, 8 MB Flash
    Networking Interface (1) 10/100 Ethernet Port
    Wireless Approvals FCC, IC, CE
    RoHS Compliance Yes

PBE-M2-400 Physical/Electrical/Environmental

    Dimensions 420 x 420 x 289 mm (16.54 x 16.54 x 11.38 in)
    Weight 1.795 kg (3.96 lb)
    Power Supply 24V, 0.5A PoE
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Max. Power Consumption 6 W
    Gain 18 dBi
    Operating Frequency 2405 - 2475 MHz
    Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    LEDs (1) Power, (1) LAN, (4) WLAN
    Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
    Channel Sizes 5/8/10/20/30/40 MHz
    Polarisation Dual Linear
    Enclosure Outdoor UV Stabilised Plastic
    Mounting Pole-Mount Kit Included
    ESD/EMP Protection Air: ±24 kV, Contact: ± 24 kV
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Non-Condensing
    Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
    Vibration Test IEC 68-2-6
    Temperature Shock Test IEC 68-2-14
    UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
    Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
