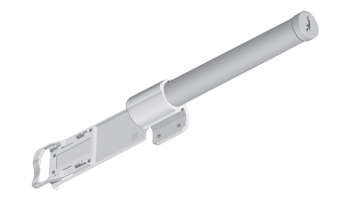

The Ubiquiti Omni Antenna AirMAX MiMo 5GHz 10dBi is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Ubiquiti Rocket M radios (Ubiquiti Rocket M sold separately). Ubiquiti Rocket M combines the "brains" in one robust unit; just pair Ubiquiti Rocket M with an Ubiquiti AirMax Omni to create powerful 360° omnidirectional base station. This seamless integration gives network architects unparalleled flexibility and convenience.

Ubiquiti AMO-5G10 Key Features:

    Frequency - 5 GHz
    10 dBi Gain
    Plug-in and play integration
    Wind Survivability up to 125 mph
    Product Model Number: AMO-5G10

Technical Specifications

Utilize Ubiquiti AirMax Technology*

    Intelligent QoS - Priority is given to voice/video for seamless access.
    Scalability - High capacity and scalability.
    Long Distance - Capable of high speed Carrier Class links
    Latency - Multiple features dramatically reduce noise.

*When Omni is paired with Rocket M
Ubiquiti AirMax Omni Antenna Technical Specifications (AMO-5G10 / AMO-5G13)

    Frequency Range: 5.45 - 5.85 GHz
    Gain: 10 dBi
    Elevation Beamwidth: 12 deg / 7 deg
    Max VSWR: 1.6:1 / 1.5:1
    Downtilt: 4 deg / 2 deg
    Dimensions: (l x w x h) 158 x 98 x 579 mm / 158 x 98 x 834 mm
    Weight: 0.68 kg / 0.82 kg
    Wind Loading: 8 lb @ 100 mph / 10 lb @ 100 mph
    Wind Survivability: 125 mph
    Polarization: Dual Linear
    Cross-pol Isolation: 25 dB min
    ETSI Specification: EN 302 326 DN2
    Mounting: Universal pole mount, Rocket M bracket and weatherproof RF jumpers included
