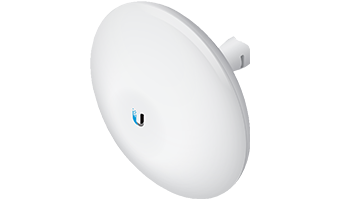

The Ubiquiti NanoBeam AC Gen2 is an airMAX CPE (Customer Premises Equipment)
which is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Ubiquiti NanoBeam AC Gen2 Key Features

    Frequency 5 Ghz
    Throughput 450+ Mbps
    Range 15+ km
    Improved Wide Bandwidth Antenna
    Dedicated Wi-Fi Radio for Management
    airMAX ac Processor for Superior Performance

Improved Noise Immunity
The Ubiquiti NanoBeam AC Gen2 directs RF energy in a tighter beamwidth.
With the focus in one direction, the NanoBeam AC Gen2 blocks or spatially
filters out noise, so noise immunity is improved. This feature is especially
important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE.
The NanoBeam AC Gen2 gets maximum gain out of the smallest footprint.
Providing high performance and an innovative form factor,
the NanoBeam AC Gen2 is versatile and cost effective to deploy.

Ubiquiti NanoBeam AC Gen2 - Technical Specifications
General

    Dimensions 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")
    Weight
    Without Mount 800 g (1.76 lb)
    With Mount 980 g (2.16 lb)
    Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
    Max. Power Consumption 7W
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Supported Voltage Range 24V ± 10%
    Operating Frequency
    Worldwide
    2412 - 2462 MHz
    5150 - 5875 MHz
    USA: U-NII-1
    5150 - 5250 MHz
    USA: U-NII-2A
    5250 - 5350 MHz
    USA: U-NII-2C
    5470 - 5725 MHz
    USA: U-NII-3
    5725 - 5850 MHz
    Gain 23 dBi
    Networking Interface (1) 10/100/1000 Ethernet Port
    Processor Specs MIPS 74Kc
    Memory 64 MB DDR2
    LEDs Power, Ethernet
    Channel Sizes PtP Mode PtMP Mode
    10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
    Enclosure Characteristics Reflector (SGCC 0.6T) / Plastic: PC
    Mounting Pole-Mounting Kit (Included)
    Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    ESD/EMP Protection ± 24 kV Contact / Air
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    Certifications CE, FCC, IC
