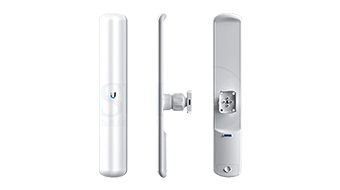

The Ubiquiti airMAX 5GHz Lite AP AC the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds
Ubiquiti airMAX 5GHz Lite AP AC Key Features
Frequency Band 5 GHz
Antenna Gain 16 dBi
airMAX ac
2x2 MIMO
Gigabit Ethernet
Point-to-Point Functionality
Point-to-MultiPoint Functionality
Ubiquiti LiteBeam LAP-120 - Technical Specifications
Physical / Electrical / Environmental
Dimensions 452.3 x 78.7 x 54.4 mm
(No Mount) (17.81 x 3.10 x 2.14")
Wind Survivability 200 km/h
Wind Loading 77 N @ 200 km/h
Mounting Kit Pole Mounting Kit (Included)
Max. Power Consumption 7W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70° C
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 KV Contact / Air
System Information
Processor Specs MIPS 74K
Memory 64 MB
Networking Interface (1) 10/100/1000 Ethernet Port
Regulatory / Compliance Information
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
