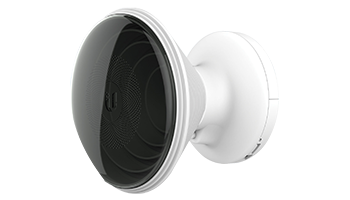

The Ubiquiti IsoStation 5AC (IS-5AC) provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimised for an urban environment.

Ubiquiti IsoStation 5AC (IS-5AC) Key Features

    450+ Mbps
    Interchangeable Isolation Antenna Horn
    All-Metal, Shielded Radio Base
    airMAX Processor for Superior Performance

The tailored antenna radiation patterns spatially filters both in-band
and out-of-band spurious RF emissions, increasing the noise immunity of the IsoStation 5AC.

Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs.
The Ubiquiti IsoStation 5AC (IS-5AC) also gets maximum gain out of the smallest footprint.

Ubiquiti IsoStation 5AC (IS-5AC) - Technical Specifications
Dimensions

    With Horn: 174 x 174 x 150 mm (6.85 x 6.85 x 5.91")
    Without Horn: 131 x 131 x 65 mm (5.16 x 5.16 x 2.56")

General

    With Horn: 725.7 g (1.6 lb)
    Without Horn: 408.2 g (0.9 lb)
    Max. Power Consumption: 8.5W
    Power Supply: 24V, 0.5A Gigabit PoE Adapter
    Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Gain: 14 dBi
    Beamwidth: 45° (Default Horn)
    Networking Interface: (1) 10/100/1000 Ethernet Port
    Processor Specs: MIPS 74 Kc
    Memory: 64 MB DDR2
    LED: (1) Power
    Mounting: Pole-Mount
    Wind Loading: 36 N @ 200 km/h (8.09 lbf @ 125 mph)
    Wind Survivability: 200 km/h (125 mph)
    ESD/EMP Protection: ± 24 kV Contact/Air
    Operating Temperature: -40 to 70° C (-40 to 158° F)
    Operating Humidity: 5 to 95% Noncondensing
    Certifications: FCC, IC, CE
