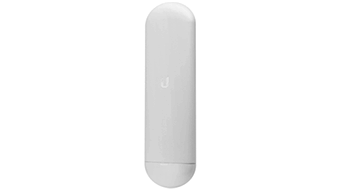

Ubiquiti airMAX NanoStation AC NS-5AC

The Ubiquiti airMAX NanoStation AC is an indoor/outdoor, compact, high-performance CPE, featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

Ubiquiti NanoStation AC Key Features

• Frequency 5GHz
• Throughput 450+ Mbps
• Range 15+ km
• Management Radio
• UNMS App Compatible

The Ubiquiti NanoStation AC gets maximum gain out of the smallest footprint. The low cost, high-performance, and small form factor of the NS-5AC makes it extremely versatile and economical to deploy.

Sleek Industrial Design
The NanoStation AC represents the next evolution of the iconic CPE design that revolutionised the Wireless ISP industry.

General

• Dimentions:
  • With Mount: 257 x 84 x 30 mm
  • Without Mount: 257 x 84 x 41 mm
• Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
• Max. Power Consumption: 8.5W
• Power Method:
  • 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
  • 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain: 16 dBi
• Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports
• Channel Bandwidths: 10/20/30/40/50/60/80 MHz
• Processor Specs: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2
• Cross-pol Isolation: 20 dB Minimum
• Max. VSWR: 1.6:1
• Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
• Polarisation: Dual Linear
• Enclosure: UV Resistant Polycarbonate
• LEDs: (1) Power, Eth1, Eth2; (1) Signal Strength
• Mounting: Pole-Mount (Kit Included)
• Operating Temperature: -40 to 70 C
• Operating Humidity: 5 to 95% Noncondensing
• RoHS Compliance: Yes
• ESD/EMP Protection: ±24kV Contact/Air
• Shock & Vibration: ETSI300-019-1.4
• Certifications: CE, FCC, IC
