Only for WiFi Radion NOT AP

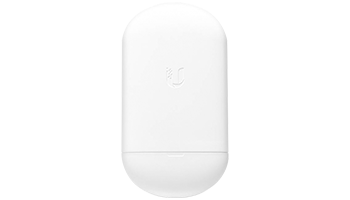

The Ubiquiti airMAX NanoStation AC Loco (NS-5ACL) is an indoor/outdoor, compact, high-performance CPE, featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

Ubiquiti NanoStation AC Loco (NS-5ACL) Key Features

    Frequency 5GHz
    Throughput 450+ Mbps
    Range 10+ km
    Management Radio
    UNMS App Compatible

The Ubiquiti NanoStation AC Loco (NS-5ACL) gets maximum gain
out of the smallest footprint. The low cost, high-performance,
and small form factor of the NS-5ACL makes it extremely versatile and economical to deploy.

Sleek Industrial Design
The NanoStation AC Loco (NS-5ACL) represents the next evolution
of the iconic CPE design that revolutionised the Wireless ISP industry.


Ubiquiti NanoStation AC Loco (NS-5ACL) - Technical Specifications
General

    Dimensions: 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")
    Weight: 180 g (6.35 oz)
    Power Supply: 24V, 0.5A Gigabit PoE Supply*
    Max. Power Consumption: 8.5W
    Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Gain: 13 dBi
    Networking Interface: 10/100/1000 Mbps Ethernet Port
    Channel Bandwidths: 10/20/30/40/50/60/80 MHz
    Processor Specs: Atheros MIPS 74Kc, 560 MHz
    Memory: 64 MB DDR2
    Cross-pol Isolation:
        20 dB Minimum
        Max. VSWR 1.8:1
    Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
    Polarisation: Dual Linear
    Enclosure: Outdoor UV Stabilised Plastic
    LEDs: (1) Power
    Mounting: Pole-Mount (Kit Included)
    Operating Temperature: -40 to 70 C (-40 to 158 F)
    Operating Humidity: 5 to 95% Noncondensing
    RoHS Compliance: Yes
    ESD/EMP Protection: ±24kV Contact/Air
    Shock & Vibration: ETSI300-019-1.4
    Certifications: CE, FCC, IC
    Operating Frequency (MHz): 5150 - 5875
    Management Radio (MHz): 2412 - 2472
