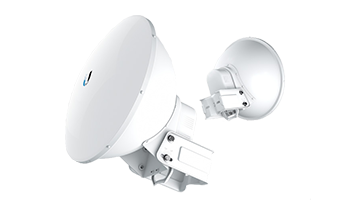

Housed in a compact form factor, the AF-5G23-S45 offers 23 dBi of gain and features the following advantages:
• Low sidelobes reduce interference from other transmitters in the area.
• High isolation enhances performance for co-location in tower‑mounted installations.
• The low-profile design with integrated radome reduces wind‑loading.

Overview
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).
The airFiber X antenna uses the 5 GHz frequency band and is available as the following models:
• AF-5G23-S45 (gain: 23 dBi)
• AF-5G30-S45 (gain: 30 dBi)

Each model is compatible with the airFiber AF-5X, a 5 GHz Carrier Backhaul Radio.

Powerful Performance
The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket™ radio delivers bandwidth to the ISP’s customers.
