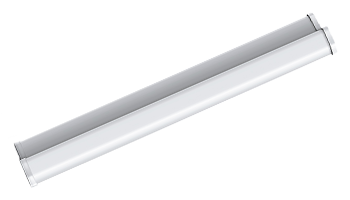

5GHz 19dBi 2x2 MIMO Sector Antenna TL-ANT5819MS
High-gain directional antenna provides wide-area coverage, ideal for Point-to-Multi-Point connections
Easy installation and seamless integration with the Pharos Base Station WBS510
MIMO technology ensures increased throughput
Weatherproof design offers protection in harsh environments
ANTENNA
Frequency 5.0 - 6.0 GHz
Impedance 50Ω
Gain 19dBi
VSWR(MAX.) 1.8 Max
HPOL Beamwidth 120° (6dB) & 90° (3dB)
VPOL Beamwidth 120° (6dB) & 90° (3dB)
Elevation Beamwidth 4°
Polarization Vertical & Horizontal
Mounting Pole Mount
Electrical Downtilt 0°
F/B Ratio 28dB Min
Survival Wind Speed 241km/h
Standards RoHS,WEEE
Interfaces RP-SMA
Dimension Product Size:700×133×57mm
Package Size:1030x185x140mm
