Overview:

    Easy-mount construction allows installation into any standard EU-type data wall-box
    Compact, low-profile design fits discreetly with any existing interior style
    Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
    Support Power over Ethernet (802.3af) for convenient and affordable installation
    Enterprise class Wi-Fi security helps to decrease network security threats
    Captive portal provides one convenient method of authentication for Wi-Fi guests


Specifications:
HARDWARE FEATURES
Interface     10/100Mbps Ethernet (RJ-45) Port *2
Button     LED/Wi-Fi Button、RESET
Power Supply     PoE(IEEE 802.3af)
Power Consumption     2.8 W
Dimensions ( W x D x H )     3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)
Antenna Type     Internal 2*1.8dBi Omni
Mounting     Wall Plate Mounting
Physical Security Lock     -
Watch Dog     Yes
WIRELESS FEATURES
Wireless Standards     IEEE 802.11n/g/b/a
Frequency     2.4GHz
Signal Rate     11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power     CE：
<15dBm(2.4GHz)
Wireless Functions     Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security     Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
EAP Controller Software     Yes
Email Alerts     Yes
LED ON/OFF Control     Yes
Management MAC Access Control     Yes
SNMP     v1,v2c
System Logging Local/Remote Syslog     Local/Remote Syslog
Telnet     Yes
Web-based Management     HTTP/HTTPS
L3 Management     Yes
Multi-site Management     Yes
OTHERS
Certification     CE, RoHS

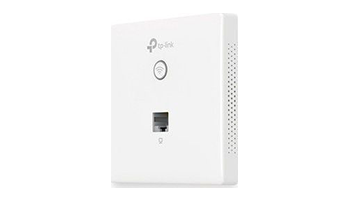

Package Contents     300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
Installation Guide
Mounting Screw
System Requirements     Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment     Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
