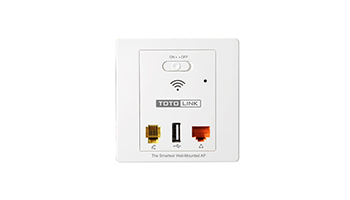

300Mbps In-wall Wireless Access Point

Supports 802.3af PoE power supply, In-wall design, 1*USB 2.0 port, Supports AP central management via WLAN controller AC500, Plug-and-Play
 Complies with IEEE 802.11 n/g/b standards.

- Up to 300Mbps data rate for Wi-Fi network.
- Functional and simple in-wall design.
- Supports multiple APs management via Soft AC controller.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Bridge/Repeater/WDS modes selectable for different working environments.
- 802.3af PoE power supply simplifies the cable deployment.
- USB2.0 port can charge all kinds of  smart phones and pads.

HARDWARE FEATURES

Interface

• 1 *10/100Mbps RJ45 LAN Port
• 1 *10/100Mbps RJ45 WAN/LAN Port
• 1 *RJ11 Port
• 1 *USB 2.0 Port

Button

• 1 *Reset
• 1 *LED ON / OFF

Power Supply

• 48V DC/0.6A
• IEEE 802.3af PoE

LED Indicator

• 1 *System

Antenna

• Internal Antenna

WIRELESS FEATURES

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3af

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 11n: up to 300Mbps
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)

EIRP

• < 20dbm

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensitivity

• 270M: -61 dBm@10% PER
• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

SOFTWARE FEATURES

Status

• System Status

Network

• LAN Setting

Operation Mode

• Bridge Mode
• Repeater Mode
• Wireless

Wireless Status

• Basic Setting
• Multiple APs
• MAC Authentication
• WDS Setting
• Advanced Setting

Management

• Administrator Setting
• Time Settings
• Upgrade Firmware
• System Log
• Reboot Schedule
