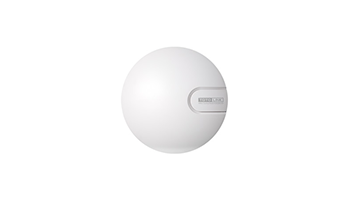

300Mbps Long Range Wireless N Ceiling Mount AP

1*FE LAN Port, 2*internal antennas,1*RST/WPS button, high power 500mW,Multi-SSID, Repeater, WDS,WiFi schedule, Supports WLAN controller AC500, PSU 48V/DC0.5A (with P/S Price will be USD7 more)

    Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Practical and elegant ceiling mount design.
    - Supports AP central management via SoftAC.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Multiple BSS allows user to add other SSIDs for access management.
    - AP/WDS/Repeater mode selectable for different requirements.
    - PoE power supply supported simplify the deployment.

HARDWARE FEATURES

Interface

• 1 *100BaseTX (Auto MDI/MDIX) LAN Port

Button

• 1 *Reset/WPS Button

Power Supply

• 48V DC/0.6A
• IEEE 802.11af PoE

LED Indicator

• 1 *System

Antenna

• 2 *4dBi Internal Antennas

Environment

• Operating Temperature: 0~55 Celsius
• Storage Temperature: -20~65 Celsius
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3af

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 802. 11n: up to 300Mbps
• 802.11g: up to 54Mbps (dynamic)
• 802.11b: up to11Mbps (dynamic)

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Channels

• 1-11 (North America)
• 1-13 (General Europe)
• 1-14 (Japan)

Modulation Type

• DBPSK
• DQPSK
• CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity

• 270M: -61 dBm@10% PER
• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

SOFTWARE FEATURES

• Network
• LAN Status
• LAN/DHCP Setup
• Wireless
• Wireless Status
• Wireless Setup
• Multiple BSS
• Wireless Multibridge
• MAC Authentication
• WDS, WPS
• Advanced Setup
• System
• System Log
• Administrator Setup
• Firmware Upgrade
• System Time
