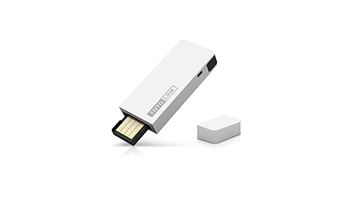

300Mbps Wireless N USB Adapter

1* WPS button

    Complies with IEEE 802.11n /g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - USB2.0 port is available for all PCs.
    - Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES) encryption.
    - WPS button allows to setup a security connection by one click.
    - Supports infrastructure and Ad-Hoc network modes.
    - Supports Windows 10/8/7/XP/Vista (32/64-bit) and Linux.
    - Easy to install and configure.

HARDWARE FEATURES

Interface

• USB 2.0

LED Indicator

• 1 *Status

Button

• 1 *WPS Button

Antenna

• 2 *internal antennas

WIRELESS FEATURES

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 802. 11n: Up to 300Mbps
• 802.11g: Up to 54Mbps (dynamic)
• 802.11b:Up to11Mbps (dynamic)

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

EIRP

• < 20dBm

Reception Sensitivity

• 270M: -61dBm@10% PER
• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

Package Contents

• N300UM Wireless Adapter *1
• Resource CD *1
