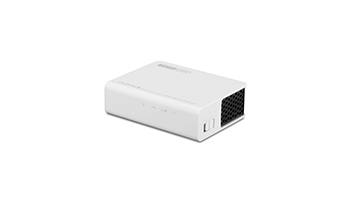

TOTOLINK iPuppy5 IP0461 150Mbps 3G/4G Wireless Portable AP

1*FE WAN/LAN port, 1*USB2.0 port, 1*mini USB2.0 port
Broadband functions: DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access), psu:5V 1.5A, VLAN, Universal repeater,WDS, Multiple SSIDs,QoS,WPS,WiFi Schedule

- Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.
- Supports DHCP, PPPoE, Static IP, PPTP, L2TP and 3G.
- Supports dual access while WAN type is PPPoE, PPTP or L2TP.
- Provides one USB 2.0 port for 3G USB modem connection.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Connects to secure network easily and fast using WPS.
- Supports IP/Port, MAC, URL filtering and Port Forwarding.
- Repeater function expands the wireless coverage and allows more terminals to access Internet.
- QoS: Bandwidth Control based on IP/MAC.
- Multiple SSID allows users to add another SSID for different needs.
- SSH Server ensures the security of remote login.
- Supports TR-069 protocol for remote centralized management.
- Easy setup simplifies the basic settings of the router.

HARDWARE FEATURES

Interface

• 1*100Mbps WAN/LAN Port
• 1*Micro USB
• 1*USB (Support 3G)

Power Supply

• 9V DC/0.5A

Button

• RST/WPS Button, AP/Router Switch

LED Indicators

• 1*Power
• 1* Wireless
• 1*WAN/LAN
• 1*USB

Antenna

• 1*2dBi internal antenna

Environment
Operating Temperature: 0~50 Celsius
Storage Temperature: -40~70 Celsius
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 802. 11n: up to 150Mbps
• 802.11g: up to 54Mbps (dynamic)
• 802.11b: up to11Mbps (dynamic)

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Output Power

• 20dBm (Max.)

Channels

• 1-11 (North America)
• 1-13 (General Europe)
• 1-14 (Japan)

Modulation Type

• DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity

• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

SOFTWARE FEATURES

• Status
• System Status, Statistics, System Log
• Setup Wizard
• Setup Wizard
• Quick Setup
• Quick Setup
• TCP/IP Settings
• LAN Interface
• WAN Interface: DHCP/Static IP,/PPPoE,/PPTP/L2TP/3G
• VLAN Settings
• Wireless
• Basic Settings(including Band, Mode, SSID, Multiple APs, etc.)
• Security Settings, Site Survey, WDS
• Advanced Settings, Access Control, WPS, Schedule
• Route Setup
• Static Route
• Routing Table
• Firewall
• IP Filtering / Port Filtering / MAC Filtering / URL Filtering
• Port Forwarding / DMZ / Denial- of- Service / NAT Mapping
• Management
• Upgrade Firmware
• Save/Reload Settings
• Web Login Password
• TR-069 config
• Date and Time
• Reboot Router
• Reboot Schedule
• Advanced
• DDNS
• QoS
• Operation Mode
• SSH Server
