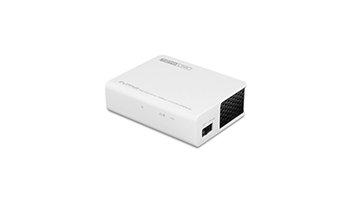

TOTOLINK iPuppy3 IP04223 150Mbps Wireless Travel AP

1*WAN/LAN FE port, 1*mini USB2.0 port, 1*RST/WPS button, 1*AP/Router Slide Switch,1*2dBi internal antenna,1*1m  USB2.0 cable
Repeater, WDS, Multi-SSID, WPS button,QoS


    Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - Portable and compact design.
    - One Micro USB port allows two ways to supply power: connect to computer or power adapter.
    - Slide switch for modes changing between AP/Router in different environment.
    - Supports PPPoE, DHCP and Static IP broadband functions.
    - Provides 64/128-bit WEP and WPA-PSK/WPA2-PSK encryption.
    - Connects to secure network easily and fast using WPS.
    - Multi-SSID allows user to add multiple SSIDs for better access control.
    - WDS mode makes it simple for WLAN expansion.
    - The IP, MAC and URL filtering makes access and time control more flexible.
    - Repeater function allows more PCs to surf Internet.
    - Easy to install and configure.

HARDWARE FEATURES

Interface

• 1 * 10/100Mbps LAN/WAN Port
• 1 * Micro USB Port

Button

• 1 * RST/WPS Button
• 1 *AP/Router Slide Switch

LED Indicators

• 1 *Power
• 1 *Wireless
• 1 *WAN/LAN

Antenna

• 1 *2dBi Internal Antenna

Dimensions

• 74mm x 57mm x 22mm (L x W x H)

Environment

• Operating Temperature: 0~55 Celsius
• Storage Temperature: -20~65 Celsius
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 802.11n: Up to 150Mbps
• 802.11g: Up to 54Mbps (dynamic)
• 802.11b: Up to11Mbps (dynamic)

Wireless Security

• 64/128-bit WEP, WPA-PSK/WPA2-PSK

Output Power

• 20dBm (Max.)

Channels

• 1-11 (North America)
• 1-13 (General Europe)

Modulation Type

• DBPSK
• DQPSK
• CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity

• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

SOFTWARE FEATURES

Network Settings

• WAN Interface
• LAN Interface/DHCP Server
• Wireless
• Wireless Basic Settings
• Multiple BSS
• Wireless Multibridge: Repeater bridge/Repeater/WDS
• MAC Authentication
• WPS Settings
• Advanced Settings
• Firewall
• Access Control
• IP/Port Filtering
• MAC Filtering
• URL Filtering
• Port Trigger
• Port Forwarding
• DMZ
• Management
• Upgrade Firmware
• DDNS
• Time Zone Settings
• System Log
• Save/Reload Settings
• Password
• Reboot
