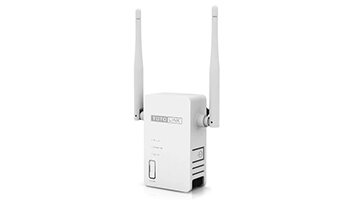

TOTOLINK EX300 300Mbps Wireless N Range Extender
1* FE LAN port, 2*4dBi external antennas, 1*RST/WPS button, 1*Power ON/OFF button

    Complies with IEEE 802.11n /g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Two external antennas enhance the throughput’s stability.
    - Changeable plug types for global use and space-saving.
    - Portable and compact stylish design.
    - Allows more users to share one account to access Internet.
    - WPS push button for easy Wi-Fi network extension.
    - Power ON/OFF button is easy for power controlling.
    - Energy saving and environmental protection.

HARDWARE FEATURES

Interface

• 1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port

Power Supply

• AC 100V~240V

Button

• 1 * RST/WPS Button
• 1 *Power ON/OFF

LED Indicators

• 1 * Wi-Fi
• 1 * Extending, 1 * LAN

Antenna

• 2 *4dBi External Antennas

Dimensions (W x D x H)

• 2.2 x 3.7 x 1.4 in. (56 x 93 x 35.8mm)

WIRELESS FEATURES

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 802. 11n: Up to 300Mbps
• 802.11g: Up to 54Mbps (dynamic)
• 802.11b: Up to11Mbps (dynamic)

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensitivity

• 270M: -61 dBm@10% PER
• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER
• Others

Package Contents

• EX300 Wireless Extender *1
• Ethernet Cable *1
• Quick Installation Guide *1

Environment

• Operating Temperature: 0~40 Celsius
• Storage Temperature: -40~70 Celsius
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
