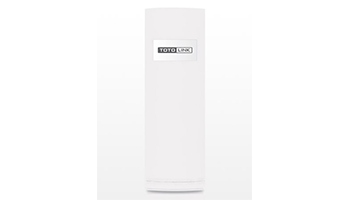

150Mbps 2.4G Wireless N Outdoor AP/Client

1*RJ45 FE Port, 1*RST button, 1*11dBi internal  antennas
Repeater, Multiple APs, WDS, QoS
high power 500mW

Complies with IEEE802.11n /g/b standards on 2.4G band.
- Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
- One 8dBi internal antenna.
- Multiple APs allows user to add other two SSIDs accordingly.
- 4 LED signal strength indications.
- Supports 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security.
- Repeater function allows more terminals to access Internet.
- Supports passive PoE power supply.
- Lightning protection design.
- QoS can allocate bandwidth reasonably.

HARDWARE FEATURES

Interface

• 1 *100BaseTX (Auto MDI/MDIX) LAN Port

Power Supply

• 12V DC /1A (PoE)

Button

• 1 *Reset Button

Antenna

• 1 *8dBi internal antenna

LED Indicators

• 1 *Power, 1 *LAN
• 1 *WLAN, 4 *Signal Strength

WIRELESS FEATURES

Standards

•  IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3u
• IEEE 802.3

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 802.11n: up to 150Mbps
• 802.11g: up to 54Mbps (dynamic)
• 802.11b: up to11Mbps (dynamic)

EIRP

• < 20dBm

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensitivity

• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

SOFTWARE FEATURES

Operation Mode

• Gateway, Bridge,
• Wireless ISP

Network

• LAN Setup
• Static DHCP Setup
• WAN Setup

Wireless

• Basic Setting
• Security Setting
• Advanced Setting
• Multiple APs
• MAC Authentication
• WDS
• WPS
• Repeater

Firewall

• IP/Port Filtering
• MAC Filtering
• URL Filtering
• Port Forwarding
• DMZ Setting
• Denial of Service

Management

• Statistics, Dynamic DNS Setting (Bridge mode doesn’t have this option)
• Time Zone Setting
• Remote Management
• System Log
• Upgrade Firmware
• Save/Reload Setting
• Administrator Setting
• Others

Package Contents

• CP150 Wireless CPE *1
• PoE Box *1
