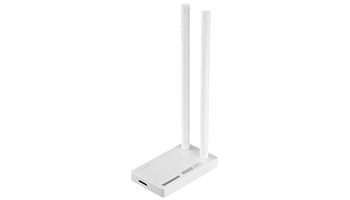

AC1200 Wireless Dual Band USB Adapter

1*Micro USB3.0 Port，1*WPS button，2*5dBi detachable antennas, 1*1.5m USB 3.0 extension cable
Support Windows 10/8/7/XP/Vista and Mac OS


    Complies with IEEE 802.11ac/a/b/g/n standards.
    - Up to 1167Mbps data rate for Wi-Fi network.
    - Operates on either 2.4GHz or 5GHz band.
    - Supports 5G band with less contention interference, more stable and better performance.
    - Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryption.
    - Provides Micro USB3.0 interface with USB extension cable.
    - Works with all existing network infrastructures.
    - Supports Windows 10/8/7/ XP/Vista (32/64-bit) and Mac OS.
    - Easy to install and configure.

HARDWARE FEATURES

Interface

• Micro 10 Pin USB 3.0

LED Indicators

• 1* Wireless

Button

• 1*WPS Button

Antenna

• 2*4dBi detachable antennas

WIRELESS FEATURES

Standards

• IEEE 802.11ac
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n

RF Frequency

• 2.4GHz/5GHz

Data Rate

• 2.4GHz: Up to 300Mbps
• 5GHz: Up to 867Mbps

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

EIRP

• < 20dBm

Reception Sensitivity

• 2.4G: 11b: <-79dbm?
• 11g: <-68dbm?
• 11n: HT20<-65dbm HT40: <-61dbm
• 5G: 11a:<-68dbm?
• 11ac: HT20<-65dbm HT40: <-61dbm HT80: <-51dbm

Package Contents

• A2000UA Wireless Adapter *1
• 5dBi antenna *2
• Resource CD *1
• USB Cable *1
• Quick Installation Guide *1

System Requirement

• Windows 10 (32/64bits)
• Windows 8 (32/64bits)
• Windows 7 (32/64bits)
• WindowsXP (32/64bits)
• Mac OS X 10.6 and up

Environment

• Operating Temperature: 0~40 Celsius
• Storage Temperature: -40~70 Celsius
