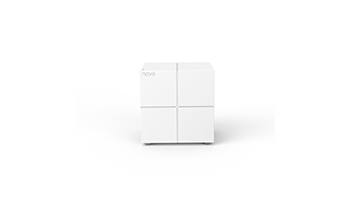

TENDA MW6-2 Whole Home Mesh WiFi System (3-pack)



nova MW6 is powered with true Mesh technology, a set of three units cover home up to 6,000 sq.ft with strong Wi-Fi signals. Smart Auto-path Selection Technology to ensure a robust wireless network and maximize a faster home internet.



6000 sq.ft Coverage, Wi-Fi Connected Anywhere



No matter the structure, a set of three nova units could fully cover up to 6,000 sq.ft. There's no hiding place for deadspots so you can enjoy a fast and consistent WiFi experience wherever you go.



Wave2.0 MU-MIMO + Beamforming Technology



Powered by the cutting-edge Wave2.0 MU-MIMO technology, nova can communicate with multiple wireless devices at the same time, and significantly outperforms traditional routers in communication efficiency.

It also comes with Beamforming technology to focus transmit power onto wireless devices for better signal strength.



Automatic network optimization to keep you online



A traditional network is unable to reconnect when the signal is lost. That won't be an issue with nova, as it automatically maintains its network status. So, if a nova is disconnected it will reconnect to an available nova to keep you online.



Seamless roaming for lag-free internet experience



With the seamless roaming feature, you can go from room to room without losing connection, creating a lag-free video call/online gaming experience when you are on the move.



Standard&Protocol

IEEE802.3, IEEE802.3ab



Interface

2 Gigabit Ethernet ports per mesh point

 WAN and LAN on primary mesh point

both act as LAN ports on additional mesh points



Button

1 reset button



Power

Input：100-240V—50/60Hz, 0.6A

Output：DC 12V==1A

Dimension

100 x 100 x 100mm(3.1 x 3.1 x 3.1in.)



Wireless Standards

IEEE 802.11ac/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz



Data Rate

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps



Frequency

Simultaneous dual band 2.4GHz & 5GHz



Basic Features

SSID Broadcast

Beamforming

Support MU-MIMO



Wireless Security

WPA2-PSK(default)

Wireless roaming

Comply with IEEE802.11v/r



Internet Connection Type

PPPoE, Dynamic IP, Static IP, Bridge Mode



DHCP

DHCP Server

DHCP Client List

Virtual Server

Port Forwarding

UPnP



Firewall

Forbid UDP flood attack

Forbid TCP flood attack

Forbid flood attack

DNS

Support manually setting DNS server



VPN

IPsec pass through

PPTP pass through

L2TP pass through



Other

Parental Control

Guest Network

Firmware upgrade online

Reset to factory settings

System Requirement

A mobile device running Android 4.0+ or iOS 8+



Temperature

Operating Temperature: 0℃ ~ 40℃

 Storage Temperature: -40℃ ~ 70℃.



Humidity

Operating Humidity:10% ~ 90% RH non-condensing

 Storage Humidity: 5% ~ 90%RH non-condensing.



Certification

FCC, CE, RoHS, EAC, IC



Package Content

(3-pack) 3 identical mesh points

3 power adapters

Quick install guide

1 gigabit ethernet cable



Product weight

(1 unit) 410g/unit



Package weight

(3-pack) 2.05kg/kit
