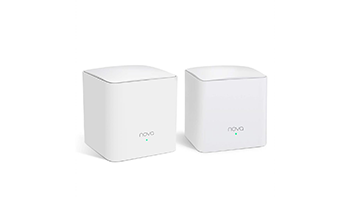

TENDA MW5S-2 MW5s AC1200 Whole Home Mesh WiFi System (2-pack)



Features:



The Tenda nova MW5s is a whole home mesh WiFi system designed for larger households with 100 Mbps or greater broadband services. Powered by Tenda's mesh technology, each node automatically connects to the other, creating a distributed network throughout your entire home. The primary node features gigabit ports, getting the most out of your 100 Mbps or greater broadband service and ensuring smooth playback of 4K videos. And the wall-plug secondary node connects to your existing Mesh network automatically with pre-paired configuration, making setup a breeze.



Works well with high speed broadband



With 2 gigabit ports included, the MW5s gets the most out of your high speed broadband services coming into your home.



Two external power amplifiers for each band to enhance the whole WiFi coverage



Two external power amplifiers used both on 2.4 GHz and 5 GHz bands of the primary node to enhance the signal strength and receiving capability,helping the nova MW5s outperform ordinary routers.



Built-in dual band antennas for excellent wall penetration capability



With features that optimize both the 2.4 GHz and 5 GHz bands, the nova MW5s system automatically adjusts the data rates when it works behind multiple walls.



RF optimization for excellent wall penetration performance



By optimizing matching circuits and applying Maximal Ratio Combining (MRC) technology, the nova MW5s dramatically improves WiFi transmission, increasing wall penetration and distributing much broader WiFi coverage.



With Maximal Ratio Combining (MRC) technology



With the signal superposition multiplexing technology, the router can make the smart phone receive strong signals, and receive strong response signals, so that it works well even through walls.



Beamforming technology concentrates the signal for better wall pesnetration



Powered by Beamforming technology, the nova MW5s projects a stronger WiFi signal in a direction where your devices are located. Instead of just broadcasting signals to a wide area, Tenda's Beamforming concentrates the signal and aims it directly at the target.



Automatic networking makes setup a breeze



All nodes are delivered pre-paired right out of the box, making the system easy to setup and an ideal choice for whole home WiFi coverage.



Supports up to 60 devices



Combining the 1 GHz main chip with MU-MIMO technology, the nova MW5s communicates simultaneously with multiple devices, ensuring a lag-free internet connection when you enable the Capacity-oriented Mode using the App.



Easy setup



The secondary node automatically connects to the primary node making cabling unnecessary



Parental Controls



Manage your child's online time



Security



Supports access control and guest network



Specification:



Standard&Protocol IEEE 802.3, IEEE 802.3u



Port Mesh5: 2 x 10/100/1000Mbps Ethernet ports

1 WAN/LAN port

1 LAN port

Mesh3f: 2 x 10/100Mbps Ethernet ports

1 WAN/LAN port

1 LAN port



Antenna

Mesh5: 2 x 3 dBi built-in omni-directional antennas

Mesh3f: 2 x 3 dBi built-in omni-directional antennas



Button Mesh5: 1 x Reset button

Mesh3f: 1 x Reset button

Power Mesh5

Input: 100 - 240 V, 50/60 Hz, 0.6 A

Output: DC 12 V == 1 A

Mesh3f

Input: 100 - 240V, 50/60 Hz, 0.3 A

Output: 9 V 1A

Indicator Mesh5: 1 System/Signal

Mesh3f: 1 System/Signal

Dimension Mesh5: 91 mm x 91 mm x 93 mm (3.58 in. x 3.58 in. x 3.66 in.)

Mesh3f: 91 mm x 91 mm x 93 mm (3.58 in. x 3.58 in. x 3.66 in.)



Wireless Standards

5 GHz: IEEE 802.11ac/a/n

2.4 GHz: IEEE 802.11b/g/n



Data Rate 5GHz: 867 Mbps

2.4GHz: 300 Mbps



Frequency

Simultaneous dual band 2.4 GHz & 5 GHz



Basic Features

SSID Broadcast

Beamforming

MU-MIMO



Wireless Security

WPA2-PSK (default)

Wireless roaming

Compliant with IEEE 802.11k/v/r



Internet Connection Type

PPPoE, Dynamic IP, Static IP, Bridge Mode

DHCP Server DHCP Server

DHCP Client List

Virtual Server Port Forwarding

UPnP



Firewall

UDP flood attack defence

TCP flood attack defence

ICMP flood attack defence





DNS

Manually setting up DNS server

VPN

IPsec pass through

PPTP pass through

L2TP pass through



Other

Parental Control

Guest Network

Firmware upgrade online

Resetting to factory settings

Setup Requirements

A mobile device running Android 4.0+ or iOS 8+



Temperature

Operating Temperature: 0 °C - 40 °C

Storage Temperature: -40 °C - 70 °C

Humidity

Operating Humidity: (10% - 90%) RH non-condensing

Storage Humidity: (5% - 90%) RH non-condensing



Certification

FCC, CE, RoHS, EAC, IC



Package Content (2-pack)

Mesh5 x 1, Mesh3f x 1

12V/1A Power adapter x 1

9V/1A power adapter x 1

Quick installation guide x 1

Gigabit Ethernet cable x 1
