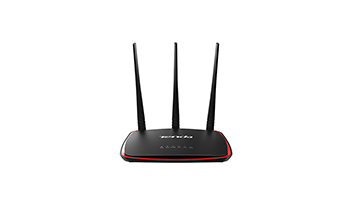

TENDA AP5 N300 Wireless Desktop Access Point



AP5 is designed to boost the range of your existing WiFi and creates a stronger signal for game consoles, printers, smart phone, tablet. Power over ethernet supported and wall-mount design make it flexible to deploy in any location. It has multi operation modes like Universal Repeater, Clien(Station), WISP, which can adapt various application scenarios. It is an ideal Wi-Fi booster for large houses, villas, eatery, large stores etc.



What It Does



AP5 is designed to boost the range of your existing WiFi and creates a stronger signal for game consoles, printers, smart phone, tablet. Power over ethernet supported and wall-mount design make it flexible to deploy in any location. It has multi operation modes like Universal Repeater, Clien(Station), WISP, which can adapt various application scenarios. It is an ideal Wi-Fi booster for large houses, villas, eatery, large stores etc.





Main Features



>>One Button to boost Wi-Fi range for ADSL router.

>>300Mbps wireless transmission rate brings smooth wireless experience.

>>Multiple operating modes include AP/Univesal Repeater/WISP/Client/Client+AP.

>>PoE power supply supported make it flexible to deploy.



One Button to boost Wi-Fi Range



AP5 has a “Range Extender” button, which allows users to boost existing Wi-Fi Range simply by pressing the "Range Extender" button.



Flexible deployment



Wall-Mount design and power over ethernet cable supported make it flexible to deploy in place without power outlet such as garage,warehouse etc.



Multi Operating Modes for Various Scenarios



Multi operating modes including AP,Universal Repeater,WISP(Client+Router), Station(client) help you to boost WiFi range in various scenarios such as large house,villa, eatery,stores, community network.





Dimension

148*146.2*31.5mm



Standard&Protocol

IEEE 802.11n/g/b



Interface

2 * 10/100M Ethernet Port (RJ45)



Antenna

3*5dBi Detachable Omni Directional (RP-SMA)



Button

1*Reset

1*Range Extender



Power Method

DC 12V=1A Passive PoE



Passive PoE power supply

Up to 40 meters Passive PoE is supported(cat5e or up)



Reception Sensitivity

b mode： 1M -89dBm@8%

11M -87dBm@8% PER

g mode： 54M -74dBm@8% PER； n mode： 72.2M -74dBm@8% PER

150M -72dBm@8% PER



LED indicator

SYS,WPS,Bridge,WiFi,LAN1,LAN2



Hardware Deployment

Desktop/Wall Mount



Frequency Range

2.4GHz-2.483GHz



LAN Settings

Static IP

Dynamic IP



DHCP Server

DHCP Server

Clients list



Wireless Rate

11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)



Operating Mode

Access Point

Universal Repeater

Station(Client)

WISP (Client+Router)

Client+AP



Wireless Function

8 SSID

Enable/Disable Wireless Radio

Broadcast SSID

SSID Hidden automatically when exceed client limit

Client limit for SSID

Transmission output power

AP isolation

RSSI threshold for wireless clients

WMM capable

APSD capable

Access control based mac address

Wireless Client list

VLAN for multi SSID



Wireless Security

64/128 WEP

WPA-PSK

WPA2-PSK

WPA&WPA2-PSK

WPA

WPA2



Video user capacity

5



wireless users capacity

20+



Diagostic

Wireless site survey

Ping

Traceroute



Network Service

Schedule Reboot

Http/Https



Managed by AC

AC500



Package Content

300Mbps Wireless N High Power Access Point AP5

1*PoE Injector

1*Quick Installation Guide

1*Ethernet cable

1*Power Adapter

2*Screws

2*Plastic Bolt



Management Tool

Reboot

Restore to factory default

System Log

Firmware update

Time&Date Setting

Backup/Restore Configuration

Username Managerment



Temperature

Operating Temperature:-10℃~45℃

Storage Temperature: -30℃~70℃



Humidity

Operating Humidity:10%~90% non-condensing

Storage Humidity:5%~90% non-condensing



Default Settings

IP Address: 192.168.0.254

Login Username:admin

Login Password:admin



Certification

FCC/CE/Rohs/VoC
