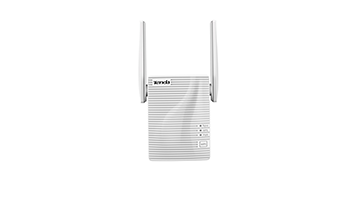

TENDA A301 300Mbps WiFi Repeater



A301 is an N300 Mini WiFi repeater dedicated for two-storey houses, villas, and multi-room houses with an area over 120 square meters. It offers up to 300 Mbps data rate on 11n band. With two external omni-directional antennas, A301 can provide larger WiFi coverage, as well as extreme fast data rate, satisfying applications such as playback of 1080P HD videos, massively multiplayer online games, and high-speed download. With the upgrade Setup Wizard, it only takes you three steps to configure your repeater, which is easy to use. A301 also works better with other brands' WiFi router available on the market. For whole home WiFi coverage, A301 is your best choice.



Port

1 * 10/100M Ethernet Port (RJ45)



Button

Reset, WPS



LED indicator

1 * Signal LED

1 * WPS LED

1 * Power LED



Power Supply

5V 1A, built-in



Plug Type

EU、UK、US、AU、AR



Power Consumption

No-load: 1.6W, Full-load: 3.8W



Standard&Protocol

IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n on 2.4 GHz



Data Rate

802.11b: 11 Mbps

802.11g: 54 Mbps

802.11n: 300 Mbps



Frequency Band

11n: 2.412-2.484 GHz



Transmit Power

< 20 dBm (EIRP)



Antenna

2 * External 3dBi omni-directional antenna (non-detachable)

Channel

11n: 20/40MHz by default



Operating Mode

Repeater Mode

AP Mode



Wireless security protocol

Encryption mode: Mix WPA-PSK/WPA2-PSK

WPA algorithm: TKIP&AES



DHCP Server

Support



System Tool

Firmware upgrade, Restore factory settings, Login password, and Reboot



Dimension

80mm * 58mm * 48mm



Temperature

Operating temperature:0ºC~40ºC

Storage temperature:-40ºC~70℃



Humidity

Operating humidity:(10 – 90)% RH, non-condensing

Storage temperature:5%~90%RH, non-condensing



Certification

CE、FCC、RoHs
