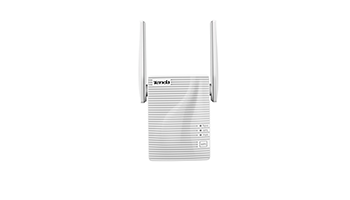

TENDA A18 Boost AC1200 WiFi for whole home



A18 is an AC1200 dual-band WiFi repeater dedicated for two-storey houses, villas, and multi-room houses with an area over 120 square meters. It offers up to 300 Mbps data rate on 11n band and 867 Mbps data rate on 11ac band. With two external omni-directional antennas, A18 can provide larger WiFi coverage, as well as extreme fast data rate, satisfying applications such as playback of 1080P HD videos, massively multiplayer online games, and high-speed download. With the upgrade Setup Wizard, it only takes you three steps to configure your repeater, which is easy to use. A18 also works better with other brands' WiFi router available on the market. For whole home WiFi coverage, A18 is your best choice.



Port

1*10/100 Mbps RJ45



Button

Reset, WPS



LED indicator

1 * Signal LED

1 * WPS LED

1 * Power LED



Power Supply

9V 0.8A, built-in



Plug Type

National Standard, US Standard, European Standard, UK Standard, Brazil Standard



Power Consumption

No-load: 2.8W, Full-load: 5.2W



Dimension

80mm * 58mm * 48mm



Standard&Protocol

IEEE 802.11a, IEEE 802.11n, and IEEE 802.11ac wave2 on 5 GHz

IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n on 2.4 GHz



Data Rate

802.11b: 11 Mbps

802.11g: 54 Mbps

802.11n: 300 Mbps

802.11ac: 867 Mbps



Frequency Band

11n: 2.412-2.484 GHz

11ac: 5.15-5.25 GHz



Transmit Power

2.4 GHz: 16dBm

5 GHz: 12dBm



RSSI

2.4 GHz

11b-1M:-97dBm

11g-54M:-76dBm

11n-20M-MCS7:-74dBm

11n-40M-MCS7:-72dBm

5 GHz:

11a-6M:-95dBm

11n-20M-MCS7:-74dBm

11n-40M-MCS7:-72dBm

11ac-80M-MCS9:-63dBm



Antenna

2 * External 2dBi dual-band omni-directional antenna (non-detachable)



Channel

11n: 20/40MHz by default

11ac: 80MHz by default



Operating Mode

Repeater Mode

AP Mode



Wireless Security

Default encryption mode: Mix WPA-PSK/WPA2-PSK

WPA algorithm: TKIP





DHCP Server

Supported



System Tool

Firmware upgrade, Restore factory settings, Login password, and Reboot



Temperature

Operating temperature:0ºC~40ºC

Storage temperature:-40ºC~70℃



Humidity

Operating humidity:(10 – 90)% RH, non-condensing

Storage temperature:5%~90%RH, non-condensing



Package Content

1 * AC1200 Dual Band WiFi Repeater

1 * Quick Installation Guide
