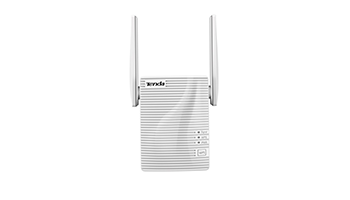

TENDA A15 AC750 Dual Band WiFi Repeater



A15 is an AC750 dual-band WiFi repeater dedicated for two-storey houses, villas, and multi-room houses with an area over 120 square meters. It offers up to 300 Mbps data rate on 11n band and 433 Mbps data rate on 11ac band. With two external omni-directional antennas, A15 can provide larger WiFi coverage, as well as extreme fast data rate, satisfying applications such as playback of 1080P HD videos, massively multiplayer online games, and high-speed download. With the upgrade Setup Wizard, it only takes you three steps to configure your repeater, which is easy to use. A15 also works better with other brands' WiFi router available on the market. For whole home WiFi coverage, A15 is your best choice.



Interface

1 Megabit LAN Ethernet ports



Antenna

2*2dBi Omni-directional antennas



Button

1 reset button

1 WPS button



Power

Input：100-240V—50/60Hz, 0.3A

Output：9V800mA



Indicator

1 Signal

1 WPS

1 PWR



Dimension

80 x 57 x 45mm(3.1 x 2.2 x 1.7 in.)



Wireless Standards

IEEE 802.11n/a/ac

IEEE 802.11b/g/n



Frequency

2.4GHz, 5GHz



Wireless Speed

5GHz：Up to 433Mbps

2.4GHz：Up to 300Mbps



Basic Function

Hide SSID



Wireless Security

WPA/WPA2-PSK(default)



Data Rate

802.11b: 11 Mbps

802.11g: 54 Mbps

802.11n: 300 Mbps

802.11ac：433Mbps



RSSI

2.4GHz：

11b-1M:-97dBm

11g-54M:-76dBm

11n-20M-MCS7:-74dBm

11n-40M-MCS7:-72dBm

5GHz:

11a-6M:-95dBm

11n-20M-MCS7:-74dBm

11n-40M-MCS7:-72dBm

11ac-80M-MCS9:-63dBm





Operating Mode

AP Mode and Repeater Mode



DHCP Server

Support



Wireless security protocol

Default encryption mode: Mix WPA-PSK/WPA2-PSK

Blacklist



Channel

11n：20/40MHz by default

11ac： 80MHz by default



Other

Firmware upgrade, Restore factory settings, Login password, and Reboot



Temperature

Operating Temperature: 0℃ ~ 40℃

 Storage Temperature: -40℃ ~ 70℃.



Humidity

Operating Humidity:10% ~ 90% RH non-condensing

 Storage Humidity: 5% ~ 90%RH non-condensing.



Certification

FCC, CE, RoHS, EAC, IC
