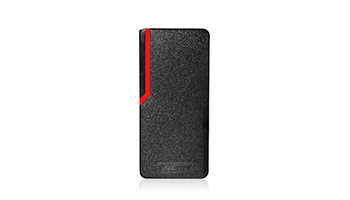

SEBURY W2 Waterproof standalone access control reader (IP68)



Product model: W2

Product name: Matted shell waterproof access control/reader

Working temperature: - 40 ~ 60 ° C

Card reader type: EM

Product size: 103 * 48 * 23 mm



Waterproof access control/reader specially designed for the waterproof plastic matte case. With large user capacity and user friendly manager card. Can be used as controller and reader to suit for different kinds of needs of the customer.



· Compact, stylish appearance design, plastic matte technic;

· Large Capacity:10,000 users

· EM Card Support (125Khz)

· Waterproof: Fully Potted, Confirms to IP65

· User Friendly:with the manager card, can add/delete the users directly/Infrared remote control keyboard operation;

· NMOS with heavy current drives the electric lock directly, prevent unlocking by magnetic illegally, and lock type can be set by software.

· Additional functions: anti-tamper, door magnetic, safe mode set , inter-collected , inter-locked and anti-passback.



Specifications



· Operating Voltage: DC12±10%

· Static Current : ≤15mA

· Card read range: 3-6 cm

· Operating Temperature: -40℃ ~60℃

· Operating Humidity : 0-95%

· Lock MAX Output Load: 3A

· Alarm MAX Output Load : 3A

· Manger Card: 2pcs

· Dimension: 103mm× 48mm × 23mm
