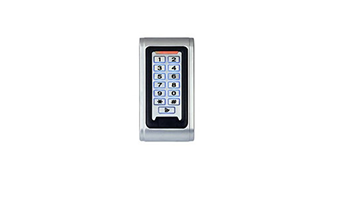

Standalone water and vandal-proof RFID 13.56MHz S601 controller



Standalone water and vandal-proof access control controller with integrated RFID 13.56MHz proximity reader and backlit keyboard. Memory for 2000 users. NO / NC Relay output, 3A / 24VDC. Light and sound indication. 3 ~ 6 reading distance. Opening modes: RFID Map, Code, Code + Map. Master code / card programming, 1 ~ 99s retention time, single card deletion. Exit button login. IUC / tamper input. Alarm output. Built-in LDR tamper. Wiegand 26bit I / O for connecting to another controller or optional reader. Power supply: DC12V ± 10% / 60mA. Dimensions: 120x58x22mm. Operating temperature -45ºC ~ 60ºC. Suitable for outdoor installation, IP68. 0.231 Kgr
