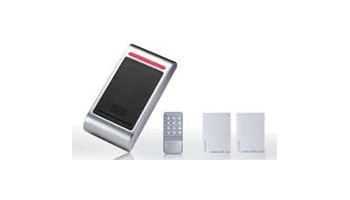

Standalone water and vandal-proof RM2D access controller



Standalone water and vandal-proof access control controller with built-in contactless RFID 125kHz reader. Memory for 10,000 users. NO / NC Relay output, 2A / 24VDC. Light indication. 3 ~ 6 reading distance. Master card programming and infrared remote control, retention time of 1 ~ 99s, ability to delete individual cards. Antipassback and Interlock functions when connecting two controllers. Exit button login. IUC / tamper input. Alarm output. Wiegand 26bit output for connection to another controller. Wiegand 26bit input for connecting an additional reader. Power supply: DC12V ± 10% / 30mA. Dimensions: 115x56x22mm. Operating temperature -10ºC ~ 60ºC. Suitable for outdoor installation, IP68. 0.386 Kgr
