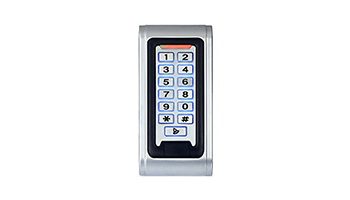

Standalone water and vandal-proof controller R601D





Standalone water and vandal-proof access control controller with integrated RFID 125kHz non-contact reader and backlit keyboard. Memory for 2000 users. NO / NC Relay output, 3A / 24VDC. Light indication. 3 ~ 6 reading distance. Opening modes: RFID Map, Code, Code + Map. Master code / card programming, 1 ~ 99s retention time, single card deletion. Exit button login. IUC / tamper input. Alarm output. Wiegand 26bit output for connection to another controller. Power supply: DC12V / 60mA. Dimensions: 120x58x22mm. Operating temperature -25ºC ~ 60ºC. Suitable for outdoor installation, IP68. 0.255 Kgr
