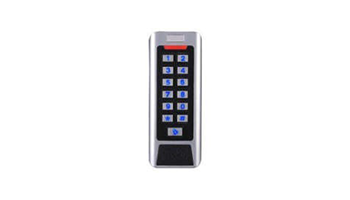

Standalone water and vandal-proof CC1C controller



Independent water and vandal-proof controller for single-sided access control of two doors (two-sided for one door) with built-in contactless IC 13.56kHz reader and backlit keyboard. Memory for 2000 users. 2x NO / NC Relay output, 1A / 24VDC. Light and sound indication. 2 ~ 4 reading distance. Opening modes: RFID Map, Code, Code + Map. Master code / card programming, 1 ~ 99s retention time, single card deletion. Anti-passback and Interlock functions. 2x Exit button input. 2x IUC / tamper input. 2x Alarm output, 2x Bell output. Wiegand 26bit output for connection to another controller. Wiegand 26bit input for connecting an additional reader. Power supply: DC12V / 100mA. Dimensions: 145x58x24mm. Operating temperature: -45ºC ~ 55ºC. Suitable for outdoor installation, IP55. 0.386 Kgr
