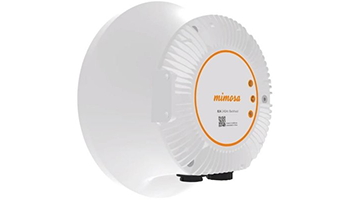

MIMOSA MIMOSA-B24 24GHz 1.5Gbps capable PtP backhaul, 100-00074
Network specifications
Wireless interface
LAN architecture 10Base-T/100Base-TX/1000Base-T
Wi-Fi
IEEE 802.11b/g/n data exchange protocols supported
Device Location External
Supported LAN protocol HTTPS
QoS
SNMPv2
Serial data transfer speed 1.5 Gbps
Frequency range 24 GHz
Wi-Fi Band Frequency 2.4 GHz
Modulation type OFDM
256QAM
Network Features Web Interface
Dual Band
4x4 MIMO
Antenna External
Certificates FCC, UL, EC, EN, RoHS
Power
Power over Ethernet DC 48 V
Maximum output power 19.5 W
Other features
Protection from external influences Wind Survivability up to 200 km/hr
Degree of protection IP67
Built-in devices Indicator - LED
GPS
Dimensions and weight
Depth 134 mm
Height 260 mm
Width 260 mm
Nominal weight 2.76 kg
Terms of use
Maximum ambient temperature 55 °C
Max. ambient air humidity 100 %
Minimum ambient temperature -40 °C
Min. working air humidity 5 %
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1 kg
Package Weight - Net (kg) 1 kg
Quantity per pack 1
Carton weight - Gross (kg) 1 kg
Retail Packaging Net Weight Carton 1 kg
Retail Packaging Net Weight Plastic 1 kg
Packages in Carton 1
Package type Box
