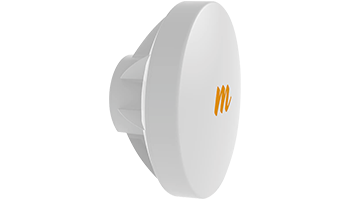

Mimosa C5 Integrated CPE

The Mimosa C5 Integrated CPE is a high gain, high throughput client device that can be dropped into any Wi-Fi-compatible network.

Mimosa C5 Integrated CPE Key Features

    Gigabit Ethernet
    10km+ Range
    802.11n Compatibility

 The C5 is available in two options, antenna-integrated or connectorized for longer distance applications, both with a Gigabit Ethernet port for up to 500+ Mbps to the client premise.. Designed for NLOS applications, it easily attaches to any standard J-mount for typical eave or rooftop mounting and can also use Mimosa’s optional customized J-mount accessory for finer adjustment capabilities.

The Mimosa C5 has incredibly high gain. With 20 dBi, the client can reach access points up to 10+ km away. With an aperture efficiency above 50%, the device is still extremely compact. The CPE constantly analyzes spectrum conditions and reports usable channels back to the Mimosa Cloud. The access point utilizes this information to optimize channel usage and performance.

Mimosa C5 Integrated CPE - Technical Specifications
Performance

    Max Throughput 500+ Mbps (866 Mbps PHY)
    Low Latency 8 ms
    Wireless Protocols CSMA
    Mimosa Flexible TDMA
    Modes Client Mode Only

Radio

    MIMO & Modulation 2x2:2 MIMO OFDM up to 256 QAM
    Bandwidth 20/40/80 MHz channels tunable to 5 MHz increments
    Frequency Range 4900-6000 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
    Max Output Power 20 dBm
    Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz
    -90 dBm @ 40 MHz
    -93 dBm @ 20 MHz

Antenna

    Gain 20 dBi Beamwidth ( 3dB ) 8° (azimuth and elevation)
    Cross-Polar Isolation >20 dB
    Polarization Dual 45° slant polarization

Power

    Max Power Consumption 15 W
    System Power Method 802.3at compliant
    PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection

Physical

    Dimensions Width: 153.31 mm Diameter: 260.33 mm
    Weight 0.72 Kg
    Enclosure Characteristics Outdoor UV stabilized plastic
    Wind Survivability 200 km/h (125 mph)
    Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)
    Mounting Single pole strap feed point integrated into plastic back plate with integrated curvature for contact with mounting poles.
    Azimuth and Elevation adjustability only provided via J-mount elevation adjustment and hose clamp loosened rotation on the pole.

Environmental

    Operating Temperature -40°C to +55°C (-40°F to 131°F)
    Operating Humidity 5 to 100% condensing
    Operating Altitude 4420 m (14500') maximum
    Shock & Vibration ETS 300-019-2-4 class 4M5

Features

    Gigabit Ethernet 10/100/1000-BASE-T
    Multi-User MIMO CPE is MU-MIMO-capable
    TDMA Mode Optional TDMA protocol for increased network efficiency
    Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
    Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
    Dynamic auto-optimization of channel and bandwidth use
    Security WPA2 + Mimosa 802.1x Client
    QoS Supports 4 pre-configured QoS levels

Regulatory + Compliance

    Approvals* FCC Part 15.407and Part 90Y, IC RS10, CE,
    ETSI 301 893/302 502
    RoHS Compliance Yes
    Safety UL/EC/EN/ 60950-1 + CSA-22.2
